Egret 15
Description
The Egret by Sam Devlin (often called the Devlin Egret or Egret 15) is a compact, versatile 15'3" sail-and-oar boat that marked the beginning of renowned naval architect Sam Devlin's design career in the late 1970s. Inspired by traditional dories and sharpies, it's an open adventurer optimized for single-handed use, blending efficient rowing, spirited sailing, and optional motoring. With its stitch-and-glue plywood construction, the Egret is lightweight, trailerable, and forgiving—stable in breezes up to 20 knots yet nimble for beach launches. Over hundreds have been built worldwide, many from kits, earning a cult following for its simplicity, speed (5–6 knots under sail), and joy as a family daysailer or explorer. Devlin himself built the prototype, evolving it from crude sketches into a refined classic that's still in production today.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

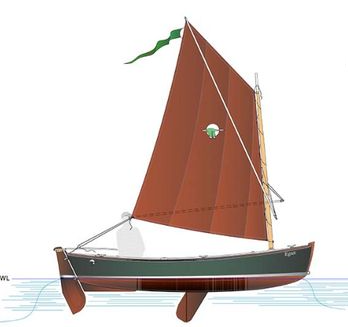

Blueprints
Sails
| Sail Type | SPRIT |
|---|---|
| Luff | 9 ft - (2743 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | 12.25 ft - (3734 mm) |
| Tack Angle | * 77.83 ° |
| Diag (clew/throat) | 11 ft - (3353 mm) |
| Head | 6 ft - (1829 mm) |
| Area | * 70.34 ft² |
| Sail Type | SPRIT |
|---|---|
| Luff | 9.167 ft - (2794 mm) |
| Foot | 8.42 ft - (2566 mm) |
| Leech | 12.5 ft - (3810 mm) |
| Tack Angle | * 96.04 ° |
| Diag (clew/throat) | 13.083 ft - (3988 mm) |
| Head | 6.083 ft - (1854 mm) |
| Area | * 76 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
