E-Boat
Description
The E Boat, also known as the E Boat Class, is a classic British one-design racing sailboat designed by Julian Everitt in 1971. Built primarily in fiberglass by yards like Banham Brothers in the UK, production ran from 1971 to the mid-1980s, with approximately 100–150 units constructed. It's an offshore one-design predating the Mini Ton class but sized to measure under the International Offshore Rule (IOR), emphasizing equalized performance for handicap racing.
Construction Details
| Designer | Julian Everitt |
|---|---|
| Builder | Banham Brothers |
| Length | 21.910 ft |

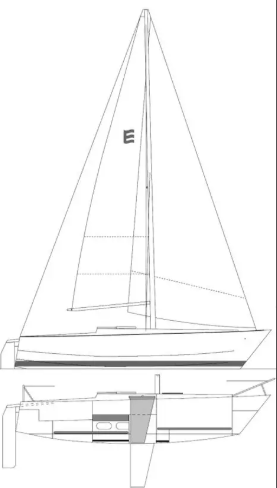

The standard boat dimensions
| i | 26.90 ft |
|---|---|
| j | 8.40 ft |
| p | 23.80 ft |
| e | 6.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 26.90 ft | 8.40 ft | 23.80 ft | 6.50 ft | - | - | - | - |
Documents
Sails
E-Boat - MAINSAIL
| Luff | * 23.8 ft - (7254 mm) |
|---|---|
| Foot | * 6.5 ft - (1981 mm) |
| Leech | * 24.29 ft - (7404 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 24.45 ft - (7452 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 80.27 ft² |
| Edit in Calculator | |
E-Boat - JIBSAIL
| Luff | 22.5 ft - (6858 mm) |
|---|---|
| Foot | 9 ft - (2743 mm) |
| Leech | 18.75 ft - (5715 mm) |
| Percentage LP | * 87.14 % |
| Length Perpendicular | * 7.32 ft - (2231 mm) |
| Deck Angle | * 18.25 ° |
| Area | * 82.34 ft² |
| Edit in Calculator | |
E-Boat - JIBSAIL
| Luff | 26.5 ft - (8077 mm) |
|---|---|
| Foot | 10.82 ft - (3298 mm) |
| Leech | 24.77 ft - (7550 mm) |
| Percentage LP | * 120.24 % |
| Length Perpendicular | * 10.1 ft - (3078 mm) |
| Deck Angle | * 3.69 ° |
| Area | * 133.82 ft² |
| Edit in Calculator | |
E-Boat - GENOA
| Luff | * 26.77 ft - (8159 mm) |
|---|---|
| Foot | * 13.53 ft - (4124 mm) |
| Leech | * 25.21 ft - (7684 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.6 ft - (3840 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 168.63 ft² |
| Edit in Calculator | |
E-Boat - ASYMMETRICAL
| Luff | 32.25 ft - (9830 mm) |
|---|---|
| Foot | 15.09 ft - (4599 mm) |
| Leech | * 29.67 ft - (9043 mm) |
| Perc LP | * 165 % |
| Area | * 365 ft² |
| Edit in Calculator | |
E-Boat - SPINNAKER
| Stays | 26.77 ft - (8159 mm) |
|---|---|
| MidGirth | 15.12 ft - (4609 mm) |
| Foot | 15.12 ft - (4609 mm) |
| Perc LP | * 180 % |
| Area | * 344 ft² |
| Edit in Calculator | |
E-Boat - STORMJIB
| Luff | 16 ft - (4877 mm) |
|---|---|
| Foot | * 6.26 ft - (1908 mm) |
| Leech | * 13.28 ft - (4048 mm) |
| Perc LP | * 60 % |
| Length Perp | * 5.04 ft - (1536 mm) |
| Deck Angle | * 19.04 ° |
| Area | * 40.32 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
