Easterly 36
Description

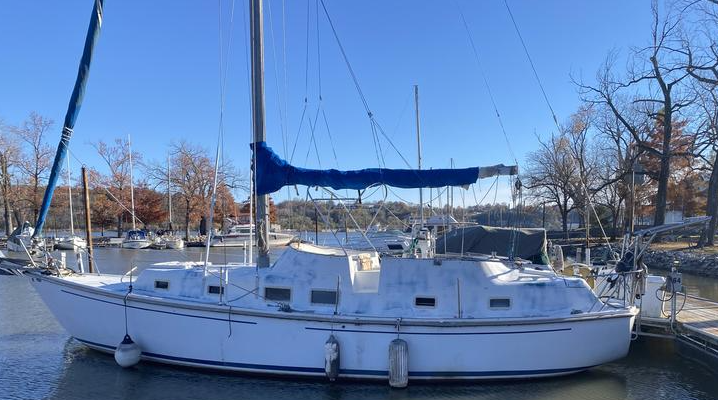

The Easterly 36 is a cruising yacht. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 36.000 ft |
| LOA | 36.000 ft |
| LWL | 27.500 ft |
| Beam | 10.830 ft |
| Displacement | 14500 lb |
| Max Draft | 5.300 ft |
The standard boat dimensions
| i | 44.50 ft |
|---|---|
| j | 15.30 ft |
| p | 37.50 ft |
| e | 13.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 44.50 ft | 15.30 ft | 37.50 ft | 13.50 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.5 ft - (11430 mm) |
| Foot | * 13.5 ft - (4115 mm) |
| Leech | * 39.13 ft - (11927 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 39.41 ft - (12012 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 261.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 37.65 ft - (11476 mm) |
| Foot | * 20.53 ft - (6258 mm) |
| Leech | * 32.3 ft - (9845 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 17.6 ft - (5364 mm) |
| Deck Angle | * 12 ° |
| Area | * 331.35 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 43.5 ft - (13259 mm) |
| Foot | 22.58 ft - (6882 mm) |
| Leech | 40 ft - (12192 mm) |
| Percentage LP | * 134.71 % |
| Length Perpendicular | * 20.61 ft - (6282 mm) |
| Deck Angle | * 5.12 ° |
| Area | * 448.31 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 45 ft - (13716 mm) |
| Foot | 26 ft - (7925 mm) |
| Leech | 42 ft - (12802 mm) |
| Perc LP | * 165 % |
| Area | * 878 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
