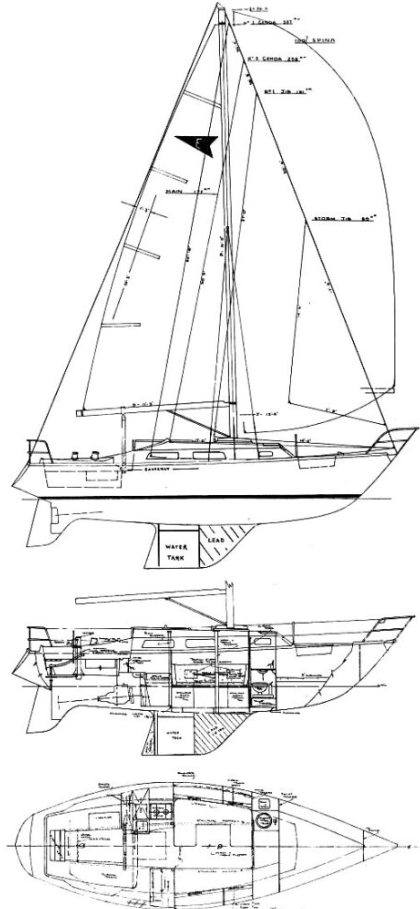

Easterly 30 by compass yachts
Description
The Easterly 30 refers to two distinct but similarly named sailboats from different regions and eras, both classic coastal cruisers with masthead sloop rigs—most commonly the Easterly 30 (Smith) from Australasia, though a separate US version exists; the primary one (and the one most referenced in owner communities) was designed by Claude Allen Smith (also known as Allen Smith or C.A. Smith, a New Zealand-based naval architect with a background in racing designs like Dragons, who later developed the Pacific 38), built primarily by Compass Yachts Ltd. (with operations in both New Zealand and Australia; the NZ yard under John Maurice and Lisle Hewitt produced the "Easterly" line, while the Australian side built related models); production ran from 1969 to 1972 (with some hulls possibly completed slightly later), featuring fiberglass construction, a fin keel with skeg-hung rudder (some with doghouse additions in NZ builds, which the designer reportedly disliked), and original engines like single-cylinder Bukh or Volvo diesels (or occasional Stuart Turner gas); quantity manufactured totals around 80 (approximately 50 in Australia as per the original design without doghouse, and about 30 in New Zealand with modifications.
Construction Details
| Designer | Claude Allen Smith |
|---|---|
| Builder | John Maurice and Lisle Hewitt |
| Length | 29.990 ft |
| LOA | 29.990 ft |
| LWL | 23.980 ft |
| Beam | 9.970 ft |
| Displacement | 9546 lb |
| Ballast | 2359 lb |
| Max Draft | 5.580 ft |
| Year Built | 1969 |
The standard boat dimensions
| i | 36.60 ft |
|---|---|
| j | 12.50 ft |
| p | 31 ft |
| e | 11.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 36.60 ft | 12.50 ft | 31 ft | 11.25 ft | - | - | - | - |
Sails
Easterly 30 by compass yachts - MAINSAIL
| Luff | * 31 ft - (9449 mm) |
|---|---|
| Foot | * 11.25 ft - (3429 mm) |
| Leech | * 32.37 ft - (9866 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 32.61 ft - (9940 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 180.21 ft² |
| Edit in Calculator | |
Easterly 30 by compass yachts - JIBSAIL
| Luff | * 30.94 ft - (9431 mm) |
|---|---|
| Foot | * 16.75 ft - (5105 mm) |
| Leech | * 26.58 ft - (8102 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 14.38 ft - (4383 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 222.48 ft² |
| Edit in Calculator | |
Easterly 30 by compass yachts - GENOA
| Luff | * 36.74 ft - (11198 mm) |
|---|---|
| Foot | * 20.35 ft - (6203 mm) |
| Leech | * 34.39 ft - (10482 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.75 ft - (5715 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 344.43 ft² |
| Edit in Calculator | |
Easterly 30 by compass yachts - GENOA
| Luff | 35.75 ft - (10897 mm) |
|---|---|
| Foot | 18.42 ft - (5614 mm) |
| Leech | 33 ft - (10058 mm) |
| Percentage LP | * 134.96 % |
| Length Perpendicular | * 16.87 ft - (5142 mm) |
| Deck Angle | * 4.8 ° |
| Area | * 301.6 ft² |
| Edit in Calculator | |
Easterly 30 by compass yachts - ASYMMETRICAL
| Luff | 37 ft - (11278 mm) |
|---|---|
| Foot | 22 ft - (6706 mm) |
| Leech | 34.25 ft - (10439 mm) |
| Perc LP | * 165 % |
| Area | * 610 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
