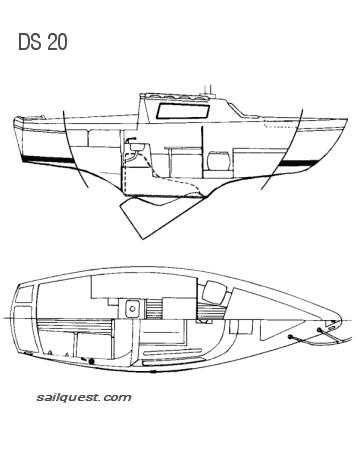

Ds20
Description
L.O.A.: 20' 5" (6.22 m) L.W.L.: 18" 1" (5.51 m) Beam: 7' 7" (2.31 m) Draft: 1' 10" (1.20 m) Displacement: 1850 lbs. (840 kg.) Ballast: 650 lbs. (295 kg.)
The standard boat dimensions
| i | 17.80 ft |
|---|---|
| j | 8.30 ft |
| p | 20.60 ft |
| e | 9.30 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 17.80 ft | 8.30 ft | 20.60 ft | 9.30 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 20.6 ft - (6279 mm) |
| Foot | * 9.3 ft - (2835 mm) |
| Leech | * 22.16 ft - (6754 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 22.3 ft - (6797 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 99.09 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 15.71 ft - (4788 mm) |
| Foot | * 11.95 ft - (3642 mm) |
| Leech | * 12.79 ft - (3898 mm) |
| Percentage LP | * 114.94 % |
| Length Perpendicular | * 9.54 ft - (2908 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 74.95 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 18.66 ft - (5688 mm) |
| Foot | * 14.23 ft - (4337 mm) |
| Leech | * 17.13 ft - (5221 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.45 ft - (3795 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 116.15 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 18.66 ft - (5688 mm) |
| MidGirth | * 14.94 ft - (4554 mm) |
| Foot | * 14.94 ft - (4554 mm) |
| Perc LP | * 180 % |
| Area | * 237 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
