Drascombe Lugger
Description

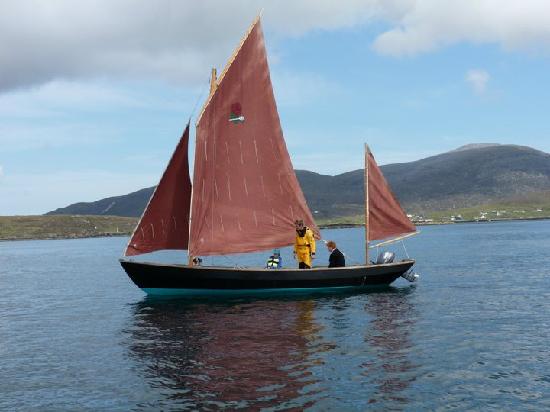

The Drascombe Lugger is a classic British trailerable sailing dinghy designed by John Watkinson and first built in 1968 by Honnor Marine in Devon, UK. As the inaugural model of the iconic Drascombe range, it embodies the brand's ethos of versatile, seaworthy "waterbirds" inspired by traditional fishing boats, combining simplicity, ruggedness, and adaptability for family sailing, rowing, or motoring in sheltered waters, tidal estuaries, or coastal bays. With over 2,000 units produced (primarily in fiberglass, with early wooden versions), it's the most popular Drascombe design, renowned for its forgiving handling, beach-launching ease, and distinctive gunter yawl rig.
Construction Details
| Designer | John Watkinson |
|---|---|
| Builder | Honnor Marine |
| Length | 19.000 ft |
| LOA | 18.750 ft |
| LWL | 14.500 ft |
| Beam | 6.250 ft |
| Displacement | 600 lb |
| Max Draft | 4.000 ft |
| Min Draft | 0.830 ft |
| Year Built | 1968 |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
Drascombe Lugger - MAINSAIL
| Luff | 15.5 ft - (4724 mm) |
|---|---|
| Foot | 8.5 ft - (2591 mm) |
| Leech | * 16.98 ft - (5176 mm) |
| Tack Angle | * 85.5 ° |
| Diagonal | 17.083 ft - (5207 mm) |
| Head (inches) | 2 in - (51 mm) |
| Area | * 66.79 ft² |
| Comments | This is the high peaked gunter rigged mainsail. |
| Edit in Calculator | |
Drascombe Lugger - JIBSAIL
| Luff | 11.83 ft - (3606 mm) |
|---|---|
| Foot | 6.75 ft - (2057 mm) |
| Leech | 11.42 ft - (3481 mm) |
| Length Perpendicular | * 6.34 ft - (1932 mm) |
| Area | * 37.48 ft² |
| Edit in Calculator | |
Drascombe Lugger - GENOA
| Luff | 11.83 ft - (3606 mm) |
|---|---|
| Foot | 9 ft - (2743 mm) |
| Leech | 11.75 ft - (3581 mm) |
| Length Perpendicular | * 8.29 ft - (2527 mm) |
| Area | * 49.04 ft² |
| Edit in Calculator | |
Drascombe Lugger - ASYMMETRICAL
| Luff | 12 ft - (3658 mm) |
|---|---|
| Foot | 10 ft - (3048 mm) |
| Leech | 11 ft - (3353 mm) |
| Area | * 90 ft² |
| Edit in Calculator | |
Drascombe Lugger - MIZZEN
| Luff | 8.42 ft - (2566 mm) |
|---|---|
| Foot | 4.92 ft - (1500 mm) |
| Leech-AftHdBd | * 8.57 ft - (2612 mm) |
| Tack Ang | * 77.07 ° |
| Diag (clew/head) | 8.75 ft - (2667 mm) |
| Head (inches) | * 1 in - (25 mm) |
| Area (no Roach) | * 21.18 ft² |
| Edit in Calculator | |
