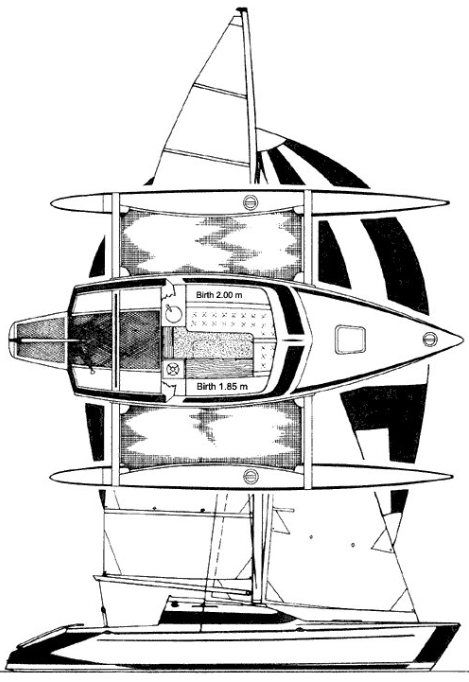

Dragonfly 25
Description
1500 lbs. trimaran
Construction Details
| Designer | Unknown |
|---|---|
| Length | 25.000 ft |
| LOA | 39.240 ft |
| LWL | 36.740 ft |
| Beam | 28.210 ft |
| Displacement | 12125 lb |
| Max Draft | 6.560 ft |
| Min Draft | 2.460 ft |
The standard boat dimensions
| i | 26 ft |
|---|---|
| j | 10 ft |
| p | 31 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26 ft | 10 ft | 31 ft | 9.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 31 ft - (9449 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech | * 31.8 ft - (9693 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 31.98 ft - (9748 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 143.89 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 25 ft - (7620 mm) |
| Percentage LP | * 128.5 % |
| Length Perpendicular | * 12.85 ft - (3917 mm) |
| Deck Angle | * 2.34 ° |
| Area | * 173.48 ft² |
| Sail Type | MAIN (LG ROACH) |
|---|---|
| Luff | * 31 ft - (9449 mm) |
| Foot | * 9.5 ft - (2896 mm) |
| Leech | * 30.57 ft - (9318 mm) |
| Tack Angle | * 88 ° |
| Diag (clew/head) | * 32.1 ft - (9784 mm) |
| Head (inches) | 36 in - (914 mm) |
| Area | * 187.54 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
