Dockrell 17
Description

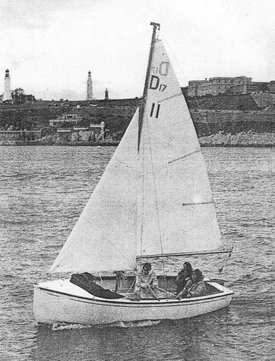

The Dockrell 17 is a dinghy. This nimble dinghy is designed for responsive sailing and easy handling, making her ideal for exploring shallow waters and protected anchorages. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 17.000 ft |
| LOA | 16.750 ft |
| LWL | 16.000 ft |
| Beam | 6.330 ft |
| Displacement | 1100 lb |
| Max Draft | 3.000 ft |
| Min Draft | 0.830 ft |
The standard boat dimensions
| i | 15.17 ft |
|---|---|
| j | 6.75 ft |
| p | 19 ft |
| e | 8.92 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 15.17 ft | 6.75 ft | 19 ft | 8.92 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 19 ft - (5791 mm) |
| Foot | * 8.92 ft - (2719 mm) |
| Leech-AftHdBd | * 20.52 ft - (6254 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 20.71 ft - (6312 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 87.51 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 7.25 ft - (2210 mm) |
| Leech | 13.25 ft - (4039 mm) |
| Percentage LP | * 96.3 % |
| Length Perpendicular | * 6.5 ft - (1981 mm) |
| Deck Angle | * 2.25 ° |
| Area | * 47.96 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 15.77 ft - (4807 mm) |
| Foot | * 11.46 ft - (3493 mm) |
| Leech | * 14.51 ft - (4423 mm) |
| Percentage LP | * 149.93 % |
| Length Perpendicular | * 10.12 ft - (3085 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 79.81 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
