Didi 29 Retro Cruising
Description
The Didi 29 Retro Cruising is a plywood pocket cruiser designed by South African naval architect Dudley Dix in the mid-2010s, blending classic aesthetics with modern performance. Part of the Didi Retro series, it’s a larger, more cruising-oriented sibling of the Didi 27 Retro, inspired by 1930s-1940s gaff-rigged racers but built with lightweight radius chine plywood for amateur construction. Optimized for coastal cruising, weekend getaways, or occasional club racing, it offers a spacious interior for 2-4 people, excellent stability, and responsive handling for short-handed crews (1-2 sailors). Its retro styling—low sheer, plumb bow, and gaff or Bermudan rig—hides a modern hull and keel for speed and efficiency, making it a versatile trailerable boat for lakes, bays, or nearshore waters. As of October 2025, approximately 10-15 plan sets have been sold, with a small but growing number of completed builds noted for their comfort, seaworthiness, and DIY affordability.
Construction Details
| Designer | Dudley Dix |
|---|---|
| Length | 29.000 ft |
| LOA | 29.330 ft |
| LWL | 24.750 ft |
| Beam | 8.170 ft |
| Displacement | 3306 lb |
| Ballast | 959 lb |
| Max Draft | 5.580 ft |
| Min Draft | 1.670 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

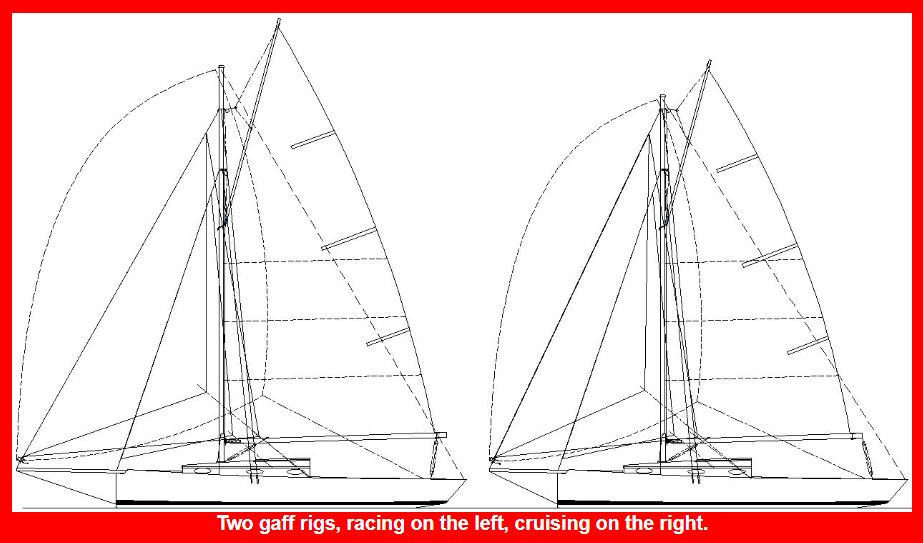

Blueprints
Sails
Didi 29 Retro Cruising - JIBSAIL
| Luff | 23.56 ft - (7181 mm) |
|---|---|
| Foot | 9.58 ft - (2920 mm) |
| Leech | 26.97 ft - (8220 mm) |
| Area | * 111.04 ft² |
| Edit in Calculator | |
Didi 29 Retro Cruising - GENOA
| Luff | 30.183 ft - (9200 mm) |
|---|---|
| Foot | 17.06 ft - (5200 mm) |
| Leech | 25.92 ft - (7900 mm) |
| Area | * 220.72 ft² |
| Edit in Calculator | |
Didi 29 Retro Cruising - ASYMMETRICAL
| Luff | 34.5 ft - (10516 mm) |
|---|---|
| Foot | 20.5 ft - (6248 mm) |
| Leech | 30 ft - (9144 mm) |
| Area | * 530 ft² |
| Edit in Calculator | |
Didi 29 Retro Cruising - YANKEE
| Luff | 30.183 ft - (9200 mm) |
|---|---|
| Foot | 13.78 ft - (4200 mm) |
| Leech | 21.65 ft - (6599 mm) |
| Area | * 135.16 ft² |
| Edit in Calculator | |
Didi 29 Retro Cruising - GAFF MAIN
| Luff | 17.72 ft - (5401 mm) |
|---|---|
| Foot | 15.42 ft - (4700 mm) |
| Leech | 32.8 ft - (9997 mm) |
| Tack Angle | * 88.4 ° |
| Diag (clew/throat) | 23.162 ft - (7060 mm) |
| Head | 13.78 ft - (4200 mm) |
| Area | * 270.12 ft² |
| Edit in Calculator | |
