Cyclone 23 Tri
Description
The CYCLONE 23 TRI is a sailboat designed by John Marples.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |

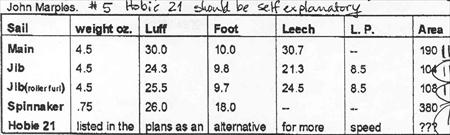

Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech-AftHdBd | * 30.49 ft - (9293 mm) |
| Tack Ang | * 84.5 ° |
| Diag (clew/head) | 30.7 ft - (9357 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 154.06 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.3 ft - (7407 mm) |
| Foot | 9.8 ft - (2987 mm) |
| Leech | 21.3 ft - (6492 mm) |
| Length Perpendicular | * 8.55 ft - (2606 mm) |
| Area | * 103.87 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 26 ft - (7925 mm) |
| MidGirth | 18 ft - (5486 mm) |
| Foot | 18 ft - (5486 mm) |
| Area | * 398 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
