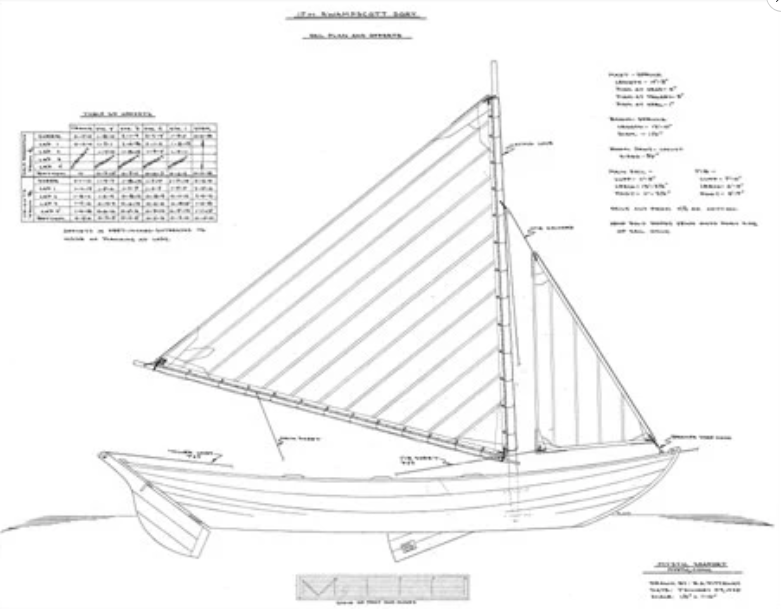

Culler Swampscott Dory
Description
The Culler Swampscott Dory is a sailboat.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | SPRIT |
|---|---|
| Luff | 10 ft - (3048 mm) |
| Foot | 8 ft - (2438 mm) |
| Leech | 12.42 ft - (3786 mm) |
| Tack Angle | * 75.44 ° |
| Diag (clew/throat) | 11.125 ft - (3391 mm) |
| Head | 5.5 ft - (1676 mm) |
| Area | * 69.3 ft² |
| Sail Type | SPRIT |
|---|---|
| Luff | 7 ft - (2134 mm) |
| Foot | 6 ft - (1829 mm) |
| Leech | 8.67 ft - (2643 mm) |
| Tack Angle | * 72.27 ° |
| Diag (clew/throat) | 7.708 ft - (2349 mm) |
| Head | 4 ft - (1219 mm) |
| Area | * 35.42 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
