CT 43 Ron Holland
Description
The CT 43 (also known as the RH-43 or Ron Holland 43) is a performance-oriented cruising sailboat designed by renowned New Zealand naval architect Ron Holland, famous for his work on fast, elegant yachts including several Nautor’s Swan models in the same era. Built by Ta Chiao Shipbuilding Co. (Taiwan) from 1985 to 1991, it features fiberglass construction with a fin keel and skeg-hung rudder for balanced handling, good upwind performance, and seaworthiness suitable for offshore cruising. The design shares hull lines with the similar Formosa 43 (often built by the same or related Taiwanese yards), blending modern performance elements with practical bluewater attributes like a moderate displacement hull for comfortable motion. Production was limited to just 13 units, making it a rare, semi-custom boat with variations in interior fit-out and rigging; it's praised for its speed potential, solid build quality, and aesthetic appeal reminiscent of Holland's Swan designs rather than the more traditional "pirate ship" styling of some Formosa/CT counterparts.
Construction Details
| Designer | Ron Holland |
|---|---|
| Builder | Ta Chiao Enterprises |
| Length | 42.670 ft |
| LOA | 42.670 ft |
| LWL | 33.850 ft |
| Beam | 13.000 ft |
| Displacement | 23780 lb |
| Max Draft | 6.750 ft |
| Year Built | 1985 |

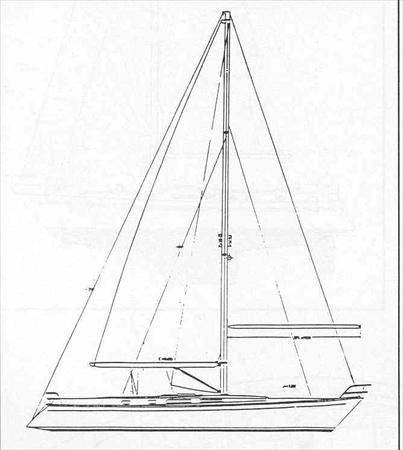

The standard boat dimensions
| i | 55 ft |
|---|---|
| j | 17 ft |
| p | 48.50 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 55 ft | 17 ft | 48.50 ft | 16 ft | - | - | - | - |
Documents
Sails
CT 43 Ron Holland - MAINSAIL
| Luff | * 48.5 ft - (14783 mm) |
|---|---|
| Foot | * 16 ft - (4877 mm) |
| Leech | * 50.27 ft - (15322 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 50.54 ft - (15405 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 398.38 ft² |
| Edit in Calculator |
CT 43 Ron Holland - JIBSAIL
| Luff | * 46.05 ft - (14036 mm) |
|---|---|
| Foot | * 22.39 ft - (6824 mm) |
| Leech | * 40.21 ft - (12256 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.55 ft - (5959 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 450.15 ft² |
| Edit in Calculator |
CT 43 Ron Holland - GENOA
| Luff | * 54.69 ft - (16670 mm) |
|---|---|
| Foot | * 27.35 ft - (8336 mm) |
| Leech | * 51.55 ft - (15712 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.5 ft - (7772 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 697.29 ft² |
| Edit in Calculator |
CT 43 Ron Holland - DRIFTER
| Luff | * 54.69 ft - (16670 mm) |
|---|---|
| Foot | * 28.41 ft - (8659 mm) |
| Leech | * 49.28 ft - (15021 mm) |
| Perc LP | * 150 % |
| Length Perp | * 25.5 ft - (7772 mm) |
| Deck Angle | * 8.98 ° |
| Area | * 697.35 ft² |
| Edit in Calculator |
CT 43 Ron Holland - ASYMMETRICAL
| Luff | * 54.69 ft - (16670 mm) |
|---|---|
| Foot | * 28.05 ft - (8550 mm) |
| Leech | * 50.31 ft - (15334 mm) |
| Perc LP | * 165 % |
| Area | * 1151 ft² |
| Edit in Calculator |
CT 43 Ron Holland - STORMJIB
| Luff | * 31.66 ft - (9650 mm) |
|---|---|
| Foot | * 12.64 ft - (3853 mm) |
| Leech | * 26.26 ft - (8004 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.2 ft - (3109 mm) |
| Deck Angle | * 19.01 ° |
| Area | * 161.5 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
