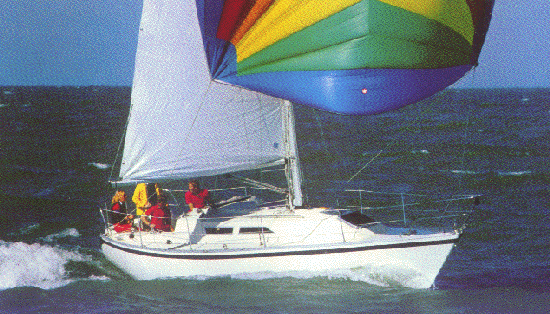

Cs 33
Description
The CS 33 is a mid-sized cruiser designed by Raymond Wall. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Raymond Wall |
|---|---|
| Length | 33.000 ft |
| LOA | 32.670 ft |
| LWL | 26.420 ft |
| Beam | 10.670 ft |
| Displacement | 10000 lb |
| Max Draft | 5.800 ft |
The standard boat dimensions
| i | 44 ft |
|---|---|
| j | 13.20 ft |
| p | 38 ft |
| e | 11.20 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 44 ft | 13.20 ft | 38 ft | 11.20 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 38 ft - (11582 mm) |
| Foot | * 11.2 ft - (3414 mm) |
| Leech-AftHdBd | * 39 ft - (11887 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 39.24 ft - (11960 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 219.82 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.75 ft - (11201 mm) |
| Foot | * 17.31 ft - (5276 mm) |
| Leech | * 32.23 ft - (9824 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.18 ft - (4627 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 278.93 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 42.75 ft - (13030 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Leech | 39.5 ft - (12040 mm) |
| Percentage LP | * 110.23 % |
| Length Perpendicular | * 14.55 ft - (4435 mm) |
| Deck Angle | * 5.8 ° |
| Area | * 311.03 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42.75 ft - (13030 mm) |
| Foot | 21.08 ft - (6425 mm) |
| Leech | 40.5 ft - (12344 mm) |
| Percentage LP | * 149.55 % |
| Length Perpendicular | * 19.74 ft - (6017 mm) |
| Deck Angle | * 3.82 ° |
| Area | * 422 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 42.75 ft - (13030 mm) |
| Foot | 18.5 ft - (5639 mm) |
| Leech | 40 ft - (12192 mm) |
| Percentage LP | * 130.76 % |
| Length Perpendicular | * 17.26 ft - (5261 mm) |
| Deck Angle | * 4.42 ° |
| Area | * 368.89 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.64 ft - (13301 mm) |
| Foot | * 21.17 ft - (6453 mm) |
| Leech | * 41.22 ft - (12564 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.8 ft - (6035 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 432.07 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 43.64 ft - (13301 mm) |
| Foot | * 21.97 ft - (6696 mm) |
| Leech | * 39.45 ft - (12024 mm) |
| Perc LP | * 150 % |
| Length Perp | * 19.8 ft - (6035 mm) |
| Deck Angle | * 8.98 ° |
| Area | * 432.05 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 44 ft - (13411 mm) |
| Foot | 22.5 ft - (6858 mm) |
| Leech | 41.5 ft - (12649 mm) |
| Perc LP | * 165 % |
| Area | * 742 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 43.64 ft - (13301 mm) |
| MidGirth | * 23.76 ft - (7242 mm) |
| Foot | * 23.76 ft - (7242 mm) |
| Perc LP | * 180 % |
| Area | * 881 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 25.27 ft - (7702 mm) |
| Foot | * 9.75 ft - (2972 mm) |
| Leech | * 21.12 ft - (6437 mm) |
| Perc LP | * 60 % |
| Length Perp | * 7.92 ft - (2414 mm) |
| Deck Angle | * 19.01 ° |
| Area | * 100.04 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
