Cs 27
Description

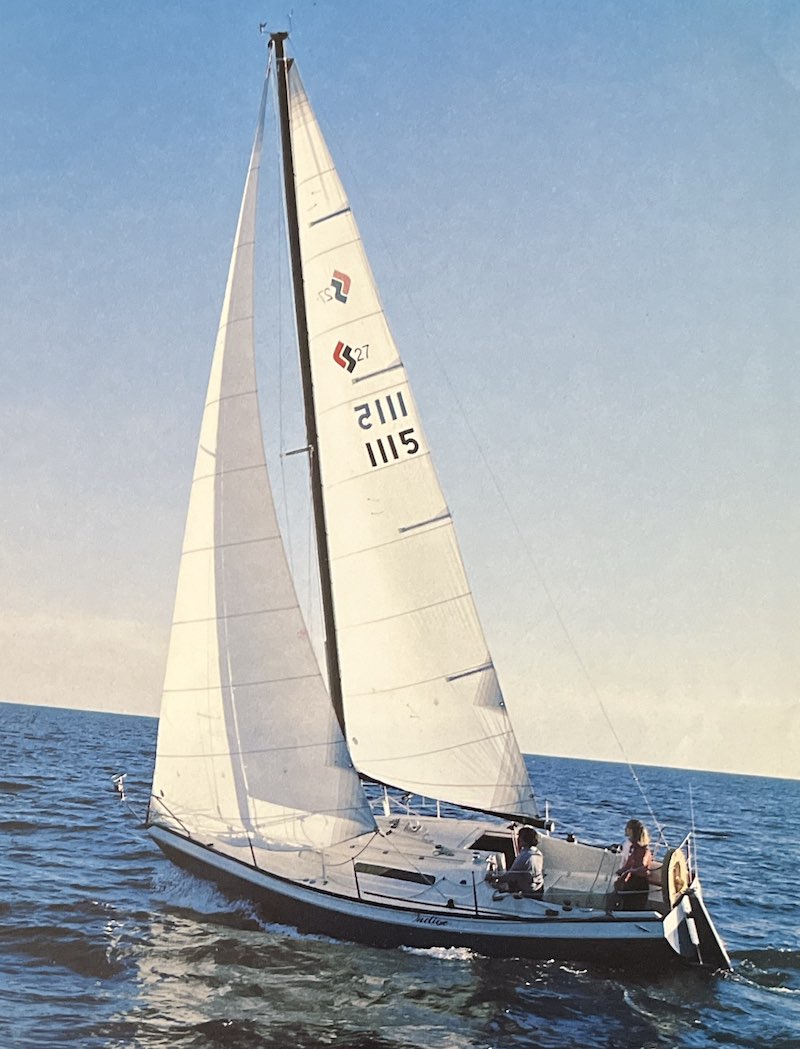

The CS 27, designed by Raymond Wall and built by CS Yachts in Canada from 1975 to 1983 with over 480 hulls produced, is a compact yet capable 27-foot performance cruiser featuring a 9.25-foot beam, 22.5-foot waterline, and a 5.17-foot fin keel (or optional 3.92-foot shoal) carrying 3,200 pounds of lead ballast in an 8,300-pound displacement for lively stability, a comfort ratio of 22–26, and a capsize screening value under 1.95. Its masthead sloop rig delivers 378 square feet of sail area for a spirited SA/D of ~16.5 and PHRF ratings around 192–210, blending quick coastal performance with surprising seaworthiness.
Construction Details
| Designer | Raymond Wall |
|---|---|
| Builder | CS Yachts |
| Length | 27.000 ft |
| LOA | 27.000 ft |
| LWL | 23.920 ft |
| Beam | 9.330 ft |
| Displacement | 6100 lb |
| Max Draft | 5.170 ft |
The standard boat dimensions
| i | 36.20 ft |
|---|---|
| j | 10.75 ft |
| p | 30 ft |
| e | 9.70 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 36.20 ft | 10.75 ft | 30 ft | 9.70 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30 ft - (9144 mm) |
| Foot | * 9.7 ft - (2957 mm) |
| Leech | * 30.9 ft - (9418 mm) |
| Tack Angle | * 88.03 ° |
| Diagonal | * 31.21 ft - (9513 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 148.69 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 30.21 ft - (9208 mm) |
| Foot | * 14.07 ft - (4289 mm) |
| Leech | * 26.54 ft - (8089 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 12.36 ft - (3767 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 186.69 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 35.87 ft - (10933 mm) |
| Foot | * 17.21 ft - (5246 mm) |
| Leech | * 33.92 ft - (10339 mm) |
| Percentage LP | * 149.95 % |
| Length Perpendicular | * 16.12 ft - (4913 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 289.12 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34.75 ft - (10592 mm) |
| Foot | 17.25 ft - (5258 mm) |
| Leech | 33 ft - (10058 mm) |
| Percentage LP | * 150.51 % |
| Length Perpendicular | * 16.18 ft - (4932 mm) |
| Deck Angle | * 3.77 ° |
| Area | * 281.09 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 35.87 ft - (10933 mm) |
| Foot | * 17.74 ft - (5407 mm) |
| Leech | * 33 ft - (10058 mm) |
| Perc LP | * 165 % |
| Area | * 477 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 35.87 ft - (10933 mm) |
| MidGirth | * 19.35 ft - (5898 mm) |
| Foot | * 19.35 ft - (5898 mm) |
| Perc LP | * 180 % |
| Area | * 590 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
