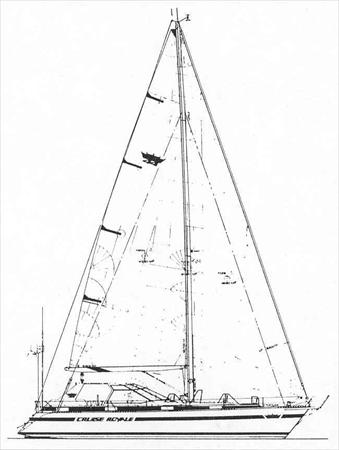

CRUISE ROYALE 44
Description
25386 lbs. Disp. 9500 lbs Ballast 35'5" LWL 12'11" Beam 6'4" Draft
The standard boat dimensions
| i | 59 ft |
|---|---|
| j | 18 ft |
| p | 51 ft |
| e | 18 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 59 ft | 18 ft | 51 ft | 18 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
CRUISE ROYALE 44 - MAINSAIL
| Luff | * 51 ft - (15545 mm) |
|---|---|
| Foot | * 18 ft - (5486 mm) |
| Leech | * 53.21 ft - (16218 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 53.49 ft - (16304 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 469.77 ft² |
| Edit in Calculator | |
CRUISE ROYALE 44 - JIBSAIL
| Luff | * 49.35 ft - (15042 mm) |
|---|---|
| Foot | * 23.66 ft - (7212 mm) |
| Leech | * 43.18 ft - (13161 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.7 ft - (6309 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 510.81 ft² |
| Edit in Calculator | |
CRUISE ROYALE 44 - GENOA
| Luff | * 58.6 ft - (17861 mm) |
|---|---|
| Foot | * 28.91 ft - (8812 mm) |
| Leech | * 55.3 ft - (16855 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 27 ft - (8230 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 791.05 ft² |
| Edit in Calculator | |
CRUISE ROYALE 44 - DRIFTER
| Luff | * 58.6 ft - (17861 mm) |
|---|---|
| Foot | * 30.03 ft - (9153 mm) |
| Leech | * 52.87 ft - (16115 mm) |
| Perc LP | * 150 % |
| Length Perp | * 27 ft - (8230 mm) |
| Deck Angle | * 8.99 ° |
| Area | * 791.11 ft² |
| Edit in Calculator | |
CRUISE ROYALE 44 - ASYMMETRICAL
| Luff | * 58.6 ft - (17861 mm) |
|---|---|
| Foot | * 29.7 ft - (9053 mm) |
| Leech | * 53.91 ft - (16432 mm) |
| Perc LP | * 165 % |
| Area | * 1305 ft² |
| Edit in Calculator | |
CRUISE ROYALE 44 - STORMJIB
| Luff | * 33.93 ft - (10342 mm) |
|---|---|
| Foot | * 13.34 ft - (4066 mm) |
| Leech | * 28.25 ft - (8611 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.8 ft - (3292 mm) |
| Deck Angle | * 18.96 ° |
| Area | * 183.26 ft² |
| Edit in Calculator | |
CRUISE ROYALE 44 - STORMTRYSAIL
| Luff | * 19.6 ft - (5974 mm) |
|---|---|
| Foot | * 18.03 ft - (5496 mm) |
| Leech | * 16.34 ft - (4980 mm) |
| Length Perp | * 16.34 ft - (4980 mm) |
| Tack Angle | * -25 ° |
| Area | * 138 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
