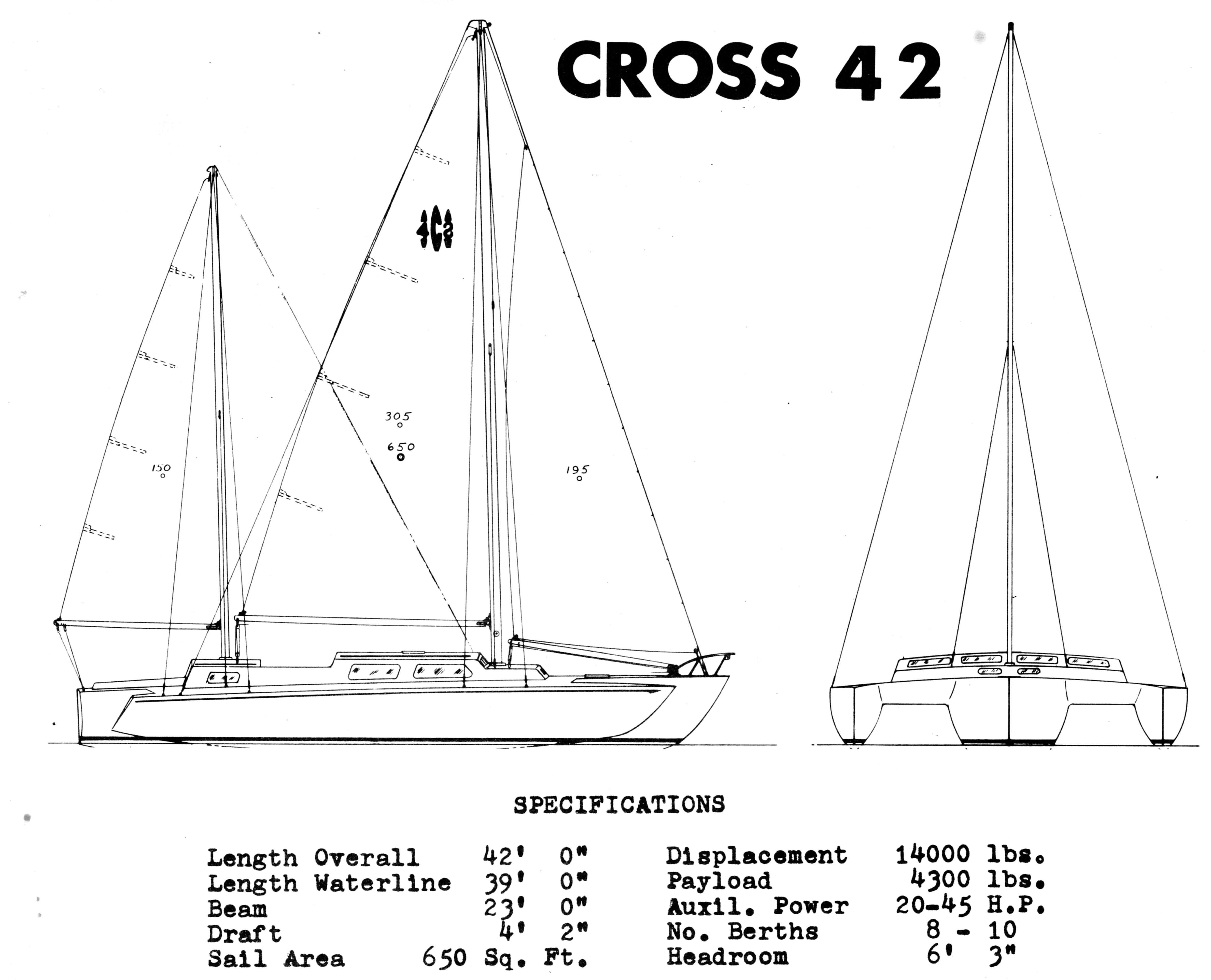

Cross 42
Description
The Cross 42 Trimaran (often referred to as the Norman Cross 42) is a rare, custom-built American folding trimaran sailboat designed by multihull pioneer Norman Cross in the early 1970s (plans dated ~1974). Primarily a plans-only design for home or professional construction using plywood-epoxy or cold-molded plywood methods, only a handful of units (estimated 5–10) were completed, reflecting its niche for serious cruisers. It features folding amas (outriggers) that collapse alongside the main hull via stainless hinges, reducing beam from ~22 ft to ~8 ft for trailering.
Construction Details
| Designer | Norman Cross |
|---|---|
| Length | 42.000 ft |
| LOA | 38.420 ft |
| LWL | 35.330 ft |
| Beam | 21.830 ft |
| Max Draft | 3.670 ft |
The standard boat dimensions
| i | 38.50 ft |
|---|---|
| j | 16.50 ft |
| p | 38.25 ft |
| e | 16.50 ft |
| p2 | 29 ft |
| e2 | 10.25 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 38.50 ft | 16.50 ft | 38.25 ft | 16.50 ft | 29 ft | 10.25 ft | - | - |
Documents
Sails
Cross 42 - MAINSAIL
| Luff | * 38.25 ft - (11659 mm) |
|---|---|
| Foot | * 16.5 ft - (5029 mm) |
| Leech | * 40.93 ft - (12475 mm) |
| Tack Angle | * 88.02 ° |
| Diagonal | * 41.13 ft - (12536 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 315.21 ft² |
| Edit in Calculator | |
Cross 42 - JIBSAIL
| Luff | 35.5 ft - (10820 mm) |
|---|---|
| Foot | 11.75 ft - (3581 mm) |
| Leech | 32.4 ft - (9876 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.98 ft - (5785 mm) |
| Deck Angle | * 12 ° |
| Area | * 189.51 ft² |
| Edit in Calculator | |
Cross 42 - SPINNAKER
| MidGirth | * 29.7 ft - (9053 mm) |
|---|---|
| Foot | * 29.7 ft - (9053 mm) |
| Perc LP | * 180 % |
| Edit in Calculator | |
Cross 42 - MIZZEN
| Luff | * 29 ft - (8839 mm) |
|---|---|
| Foot | * 10.25 ft - (3124 mm) |
| Leech-AftHdBd | * 30.42 ft - (9272 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 30.42 ft - (9272 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area (no Roach) | * 152.59 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
