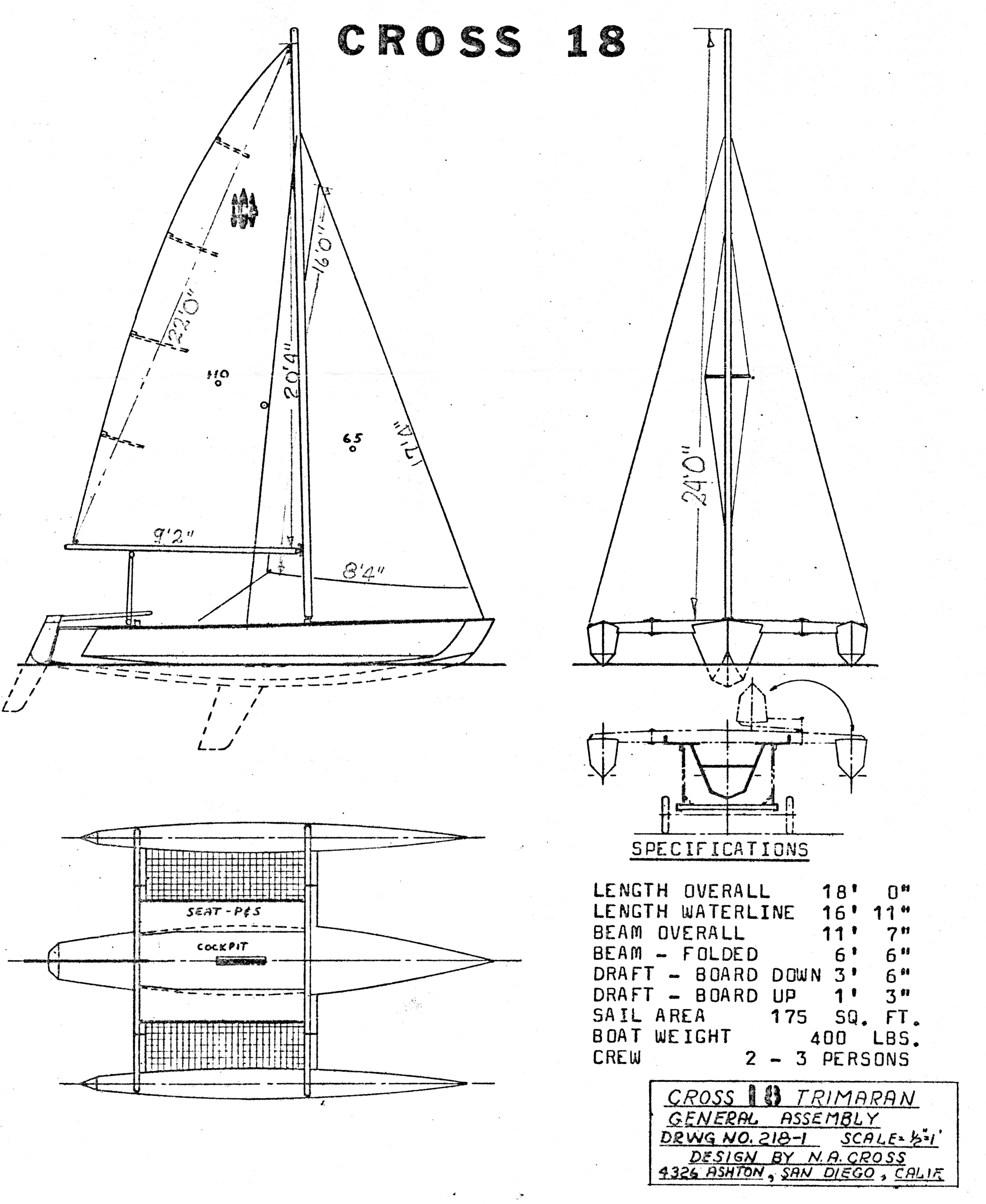

Cross 18
Description
The Cross 18 is a classic American folding trimaran sailboat designed by renowned multihull pioneer Norman Cross in the mid-1980s (plans dated around 1985). It's a plans-only, home-build design emphasizing simplicity, trailerability, and performance for coastal daysailing and racing, with over 50–100 units built (exact numbers undocumented due to amateur construction). Constructed primarily in plywood-epoxy stitch-and-glue method, it features folding amas (outriggers) that rotate 180 degrees to lie alongside the main hull, reducing beam from 18 ft to ~8 ft for trailering. Known for its conservative yet responsive handling, it's a "pioneer" in small trimarans—stable, fast in breezes, and forgiving—but dated compared to modern designs like the W17 or Strike 18.
Construction Details
| Designer | Norman Cross |
|---|---|
| Length | 18.000 ft |
| LOA | 18.000 ft |
| LWL | 16.920 ft |
| Beam | 11.580 ft |
| Displacement | 400 lb |
| Max Draft | 3.500 ft |
| Min Draft | 1.250 ft |
The standard boat dimensions
| i | 22 ft |
|---|---|
| j | 7.50 ft |
| p | 20.33 ft |
| e | 9.16 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 22 ft | 7.50 ft | 20.33 ft | 9.16 ft | - | - | - | - |
Documents
Sails
Cross 18 - MAINSAIL
| Luff | 20.33 ft - (6197 mm) |
|---|---|
| Foot | 9.17 ft - (2795 mm) |
| Leech | * 21.82 ft - (6651 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 22.01 ft - (6709 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 96.16 ft² |
| Edit in Calculator | |
Cross 18 - JIBSAIL
| Luff | 17.33 ft - (5282 mm) |
|---|---|
| Foot | 8.33 ft - (2539 mm) |
| Leech | 16 ft - (4877 mm) |
| Percentage LP | * 102.13 % |
| Length Perpendicular | * 7.66 ft - (2335 mm) |
| Deck Angle | * 4.37 ° |
| Area | * 66.34 ft² |
| Edit in Calculator | |
Cross 18 - GENOA
| Luff | * 22.08 ft - (6730 mm) |
|---|---|
| Foot | * 12.21 ft - (3722 mm) |
| Leech | * 20.66 ft - (6297 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.25 ft - (3429 mm) |
| Deck Angle | * 4 ° |
| Area | * 124.18 ft² |
| Edit in Calculator | |
Cross 18 - DRIFTER
| Luff | * 22.08 ft - (6730 mm) |
|---|---|
| Foot | * 12.72 ft - (3877 mm) |
| Leech | * 19.68 ft - (5998 mm) |
| Perc LP | * 150 % |
| Length Perp | * 11.25 ft - (3429 mm) |
| Deck Angle | * 8.98 ° |
| Area | * 124.21 ft² |
| Edit in Calculator | |
Cross 18 - ASYMMETRICAL
| Luff | 24 ft - (7315 mm) |
|---|---|
| Foot | 14 ft - (4267 mm) |
| Leech | 21 ft - (6401 mm) |
| Perc LP | * 165 % |
| Area | * 252 ft² |
| Edit in Calculator | |
