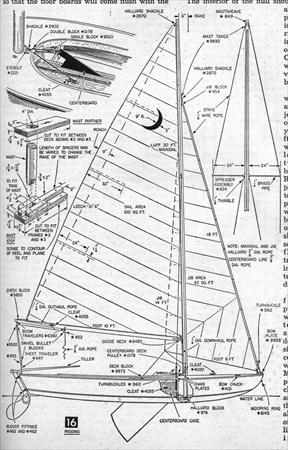

Crescent
Description
550 lbs
The standard boat dimensions
| i | 16 ft |
|---|---|
| j | 5 ft |
| p | 20 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 16 ft | 5 ft | 20 ft | 10 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 20 ft - (6096 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | * 21.38 ft - (6517 mm) |
| Tack Angle | * 85.2 ° |
| Diagonal | 21.6 ft - (6584 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 102.91 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 20 ft - (6096 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | * 21.3 ft - (6492 mm) |
| Tack Angle | * 84.58 ° |
| Diagonal | 21.5 ft - (6553 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 102.4 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 18 ft - (5486 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | 14 ft - (4267 mm) |
| Percentage LP | * 99.6 % |
| Length Perpendicular | * 4.98 ft - (1518 mm) |
| Deck Angle | * 27.26 ° |
| Area | * 44.84 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 18 ft - (5486 mm) |
| Foot | 6 ft - (1829 mm) |
| Leech | 14 ft - (4267 mm) |
| Length Perpendicular | * 3.9 ft - (1189 mm) |
| Area | * 35.14 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 16.5 ft - (5029 mm) |
| Foot | 6 ft - (1829 mm) |
| Leech | 14.75 ft - (4496 mm) |
| Length Perpendicular | * 5.33 ft - (1625 mm) |
| Area | * 44 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
