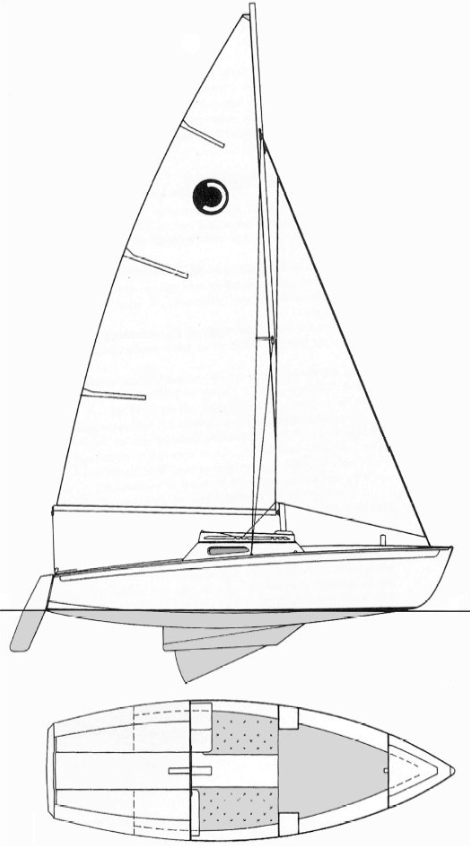

Corsaire Amiguet 18
Description
The Corsaire Amiguet 18 is a sailboat.
The standard boat dimensions
| i | 18.50 ft |
|---|---|
| j | 6.43 ft |
| p | 21.82 ft |
| e | 9.48 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 18.50 ft | 6.43 ft | 21.82 ft | 9.48 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | * 21.82 |
| 10 | * 9.48 |
| 24.55 | * 23.27 |
| 88 | * 88 |
| 24.76 | * 23.48 |
| 4.5 | * 4.5 |
| 118.76 | * 106.99 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 15.67 ft - (4776 mm) |
| Foot | * 8.64 ft - (2633 mm) |
| Leech | * 13.41 ft - (4087 mm) |
| Percentage LP | * 114.93 % |
| Length Perpendicular | * 7.39 ft - (2252 mm) |
| Deck Angle | * 12.06 ° |
| Area | * 57.89 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17 ft - (5182 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | 15 ft - (4572 mm) |
| Percentage LP | * 95.8 % |
| Length Perpendicular | * 6.16 ft - (1878 mm) |
| Deck Angle | * 9.18 ° |
| Area | * 52.37 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 18.61 ft - (5672 mm) |
| Foot | * 10.49 ft - (3197 mm) |
| Leech | * 17.39 ft - (5300 mm) |
| Percentage LP | * 149.92 % |
| Length Perpendicular | * 9.64 ft - (2938 mm) |
| Deck Angle | * 4.06 ° |
| Area | * 89.7 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
