Corsair Dash 750 Tri
Description
Overview of the Corsair Dash 750 Trimaran The Corsair Dash 750 is a high-performance, trailerable folding trimaran designed by the Corsair Design Team (evolving from Ian Farrier's work) and built by Corsair Marine International from 2009 to around 2015. Measuring 24 feet overall, it's a sporty pocket cruiser optimized for day sailing, weekend adventures, and club racing, blending the agility of the earlier Corsair F-24 with modern refinements like a rotating mast and plumb bows for better speed and handling. Introduced as an evolution of the Corsair 24 MkII (1998) and Sprint 750 (2006), the Dash 750 emphasizes lightweight composite construction (fiberglass with foam core and carbon accents) for planning performance, ease of setup, and safety—unsinkable with foam flotation and self-righting capabilities. Over 100 units were produced, with the MkII version (2013+) featuring enhanced interiors and a pop-top cabin for better ventilation.
Construction Details
| Designer | Corsair Yachts |
|---|---|
| Builder | Corsair Marine |
| Length | 24.000 ft |
The standard boat dimensions
| i | 29.27 ft |
|---|---|
| j | 10.80 ft |
| p | 32.30 ft |
| e | 10.75 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 29.27 ft | 10.80 ft | 32.30 ft | 10.75 ft | - | - | - | - |

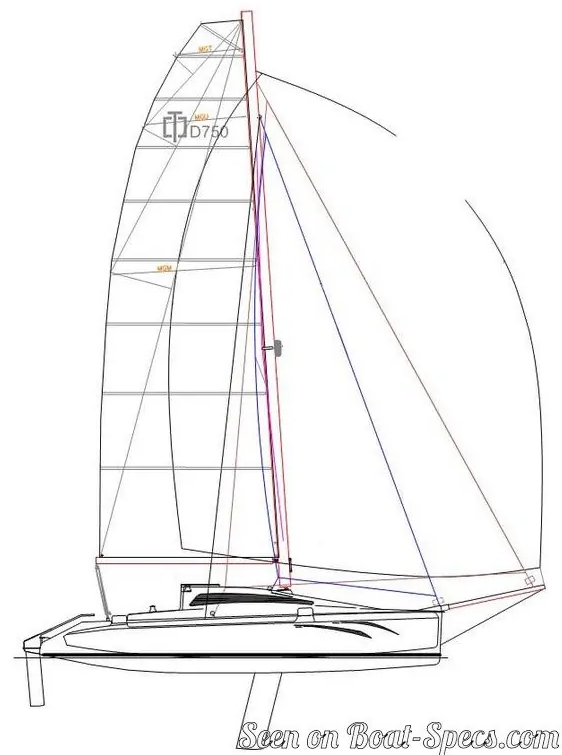

Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32.3 ft - (9845 mm) |
| Foot | * 10.75 ft - (3277 mm) |
| Leech | * 33.47 ft - (10202 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 33.68 ft - (10266 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 178.72 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 29.42 ft - (8967 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 26 ft - (7925 mm) |
| Percentage LP | * 80.65 % |
| Length Perpendicular | * 8.71 ft - (2655 mm) |
| Deck Angle | * 9.22 ° |
| Area | * 128.06 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 37.63 ft - (11470 mm) |
| Foot | 21.58 ft - (6578 mm) |
| Leech | 31.17 ft - (9501 mm) |
| Perc LP | * 165 % |
| Area | * 609 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
