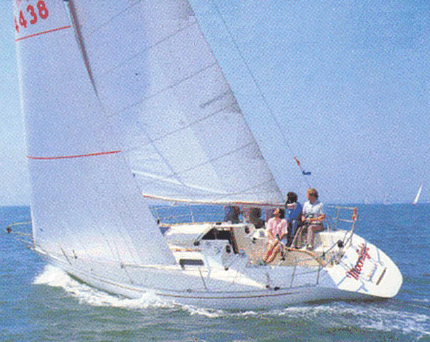

Contessa 33
Description
The CONTESSA 33 is a mid-sized cruiser designed by Rob Humphreys. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Rob Humphreys |
|---|---|
| Length | 33.000 ft |
| LOA | 32.670 ft |
| LWL | 25.420 ft |
| Beam | 11.080 ft |
| Displacement | 8988 lb |
| Max Draft | 5.820 ft |
The standard boat dimensions
| i | 41.34 ft |
|---|---|
| j | 13.48 ft |
| p | 35.53 ft |
| e | 11.02 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 41.34 ft | 13.48 ft | 35.53 ft | 11.02 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35.53 ft - (10830 mm) |
| Foot | * 11.02 ft - (3359 mm) |
| Leech-AftHdBd | * 36.59 ft - (11153 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 36.83 ft - (11226 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 202.36 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.79 ft - (10604 mm) |
| Foot | * 17.91 ft - (5459 mm) |
| Leech | * 30.11 ft - (9178 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 15.5 ft - (4724 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 269.6 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 41.31 ft - (12591 mm) |
| Foot | * 21.82 ft - (6651 mm) |
| Leech | * 38.79 ft - (11823 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.22 ft - (6163 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 417.61 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 41.31 ft - (12591 mm) |
| Foot | * 22.71 ft - (6922 mm) |
| Leech | * 36.99 ft - (11275 mm) |
| Perc LP | * 150 % |
| Length Perp | * 20.22 ft - (6163 mm) |
| Deck Angle | * 9.01 ° |
| Area | * 417.67 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 41.31 ft - (12591 mm) |
| Foot | * 22.24 ft - (6779 mm) |
| Leech | * 38.01 ft - (11585 mm) |
| Perc LP | * 165 % |
| Area | * 689 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 41.31 ft - (12591 mm) |
| MidGirth | * 24.26 ft - (7394 mm) |
| Foot | * 24.26 ft - (7394 mm) |
| Perc LP | * 180 % |
| Area | * 852 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
