Constant Camber 44 M
Description
The Constant Camber 44 M is a sailboat designed by John Marples. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 50.50 ft |
|---|---|
| j | 20 ft |
| p | 45 ft |
| e | 16.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.50 ft | 20 ft | 45 ft | 16.75 ft | - | - |

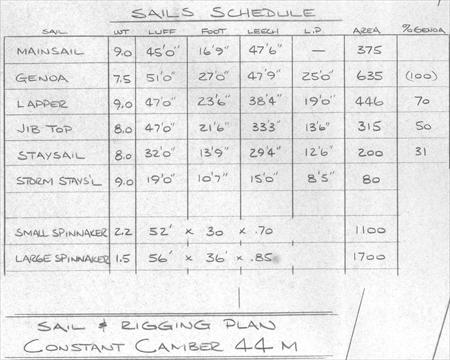

Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45 ft - (13716 mm) |
| Foot | * 16.75 ft - (5105 mm) |
| Leech-AftHdBd | * 47.22 ft - (14393 mm) |
| Tack Ang | * 88.13 ° |
| Diag (clew/head) | 47.5 ft - (14478 mm) |
| Head (inches) | 6 in |
| Area (no Roach) | * 386.48 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 47 ft - (14326 mm) |
| Foot | 23.5 ft - (7163 mm) |
| Leech | 38.33 ft - (11683 mm) |
| Percentage LP | * 95.3 % |
| Length Perpendicular | * 19.06 ft - (5809 mm) |
| Deck Angle | * 14.19 ° |
| Area | * 447.93 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 47 ft - (14326 mm) |
| Foot | 21.5 ft - (6553 mm) |
| Leech | 33.25 ft - (10135 mm) |
| Percentage LP | * 67.95 % |
| Length Perpendicular | * 13.59 ft - (4142 mm) |
| Deck Angle | * 29.17 ° |
| Area | * 319.48 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 51 ft - (15545 mm) |
| Foot | 27 ft - (8230 mm) |
| Leech | 47.75 ft - (14554 mm) |
| Percentage LP | * 124.8 % |
| Length Perpendicular | * 24.96 ft - (7608 mm) |
| Deck Angle | * 0.81 ° |
| Area | * 636.5 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 51.6 ft - (15728 mm) |
| Foot | * 33 ft - (10058 mm) |
| Leech | * 47.47 ft - (14469 mm) |
| Perc LP | * 165 % |
| Area | * 1277 ft² |
| Sail Type | STAYSAIL |
|---|---|
| Luff | 32 ft - (9754 mm) |
| Foot | 13.75 ft - (4191 mm) |
| Leech | 29.33 ft - (8940 mm) |
| Length Perpendicular | * 12.6 ft - (3840 mm) |
| Deck Angle | * 5 ° |
| Area | * 201.54 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 19 ft - (5791 mm) |
| Foot | 10.58 ft - (3225 mm) |
| Leech | 15 ft - (4572 mm) |
| Perc LP | * 41.65 % |
| Length Perp | * 8.33 ft - (2539 mm) |
| Deck Angle | * 16.47 ° |
| Area | * 79.12 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
