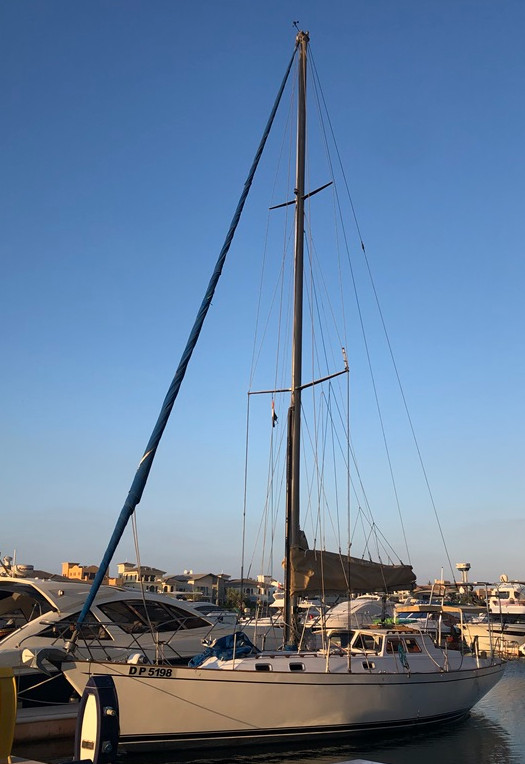

Compass 47
Description
The Compass 47 is a small sailboat. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| LOA | 24.830 ft |
| LWL | 20.000 ft |
| Beam | 8.160 ft |
| Displacement | 3200 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 53.50 ft |
|---|---|
| j | 18.20 ft |
| p | 45 ft |
| e | 15.20 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 53.50 ft | 18.20 ft | 45 ft | 15.20 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45 ft - (13716 mm) |
| Foot | * 15.2 ft - (4633 mm) |
| Leech-AftHdBd | * 46.72 ft - (14240 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 46.99 ft - (14323 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 351.65 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 53.69 ft - (16365 mm) |
| Foot | * 29.61 ft - (9025 mm) |
| Leech | * 50.28 ft - (15325 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 27.3 ft - (8321 mm) |
| Deck Angle | * 4 ° |
| Area | * 732.86 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 52.5 ft - (16002 mm) |
| Foot | 25.75 ft - (7849 mm) |
| Leech | 48.5 ft - (14783 mm) |
| Percentage LP | * 130 % |
| Length Perpendicular | * 23.66 ft - (7212 mm) |
| Deck Angle | * 4.46 ° |
| Area | * 621.07 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 45.21 ft - (13780 mm) |
| Foot | * 24.36 ft - (7425 mm) |
| Leech | * 38.86 ft - (11845 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.93 ft - (6379 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 473.08 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 55 ft - (16764 mm) |
| Foot | 32 ft - (9754 mm) |
| Leech | 51 ft - (15545 mm) |
| Perc LP | * 165 |
| Area | * 1320 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 53.69 ft - (16365 mm) |
| MidGirth | * 32.76 ft - (9985 mm) |
| Foot | * 32.76 ft - (9985 mm) |
| Perc LP | * 180 |
| Area | * 1495 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
