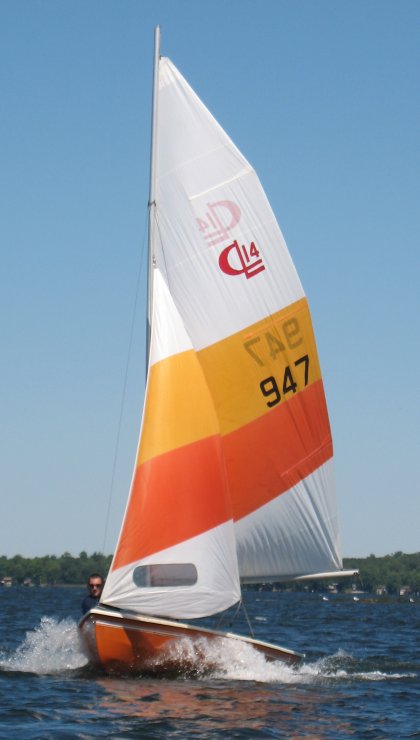

CL 14
Description
The CL 14 is a versatile fiberglass day-sailing dinghy designed by Canadian naval architect Craig L. Smith and produced by CL Sailboats (formerly C&L Boatworks) since 1980, with hundreds built as a staple for yacht clubs, sailing schools, and cottagers seeking stable, trailerable fun for beginners or racers. Measuring 14 feet 2 inches LOA with a 5-foot-8-inch beam, 475-pound hull weight, and a centerboard draft of 7 inches (up) to 3 feet 6 inches (down), its double-chine planning hull ensures remarkable stability for up to four aboard in casual outings or responsive performance for two-crew racing, powered by a fractional sloop rig with 137 square feet of sail area—mainsail and jib standard, plus optional symmetric spinnaker and trapeze for planning thrills in 10-15 knots.
Construction Details
| Designer | Craig L. Smith |
|---|---|
| Builder | C&L Boatworks |
| Length | 14.000 ft |
| LOA | 14.160 ft |
| LWL | 13.920 ft |
| Beam | 5.580 ft |
| Displacement | 240 lb |
| Max Draft | 3.500 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
CL 14 - MAINSAIL
| Luff | 18.25 ft - (5563 mm) |
|---|---|
| Foot | 9 ft - (2743 mm) |
| Leech | * 19.73 ft - (6014 mm) |
| Tack Angle | * 86.99 ° |
| Diagonal | 19.92 ft - (6072 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 84.72 ft² |
| Edit in Calculator | |
CL 14 - JIBSAIL
| Luff | 11.67 ft - (3557 mm) |
|---|---|
| Foot | 5 ft - (1524 mm) |
| Leech | 11.33 ft - (3453 mm) |
| Length Perpendicular | 4.8 ft - (1463 mm) |
| Area | * 28 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
