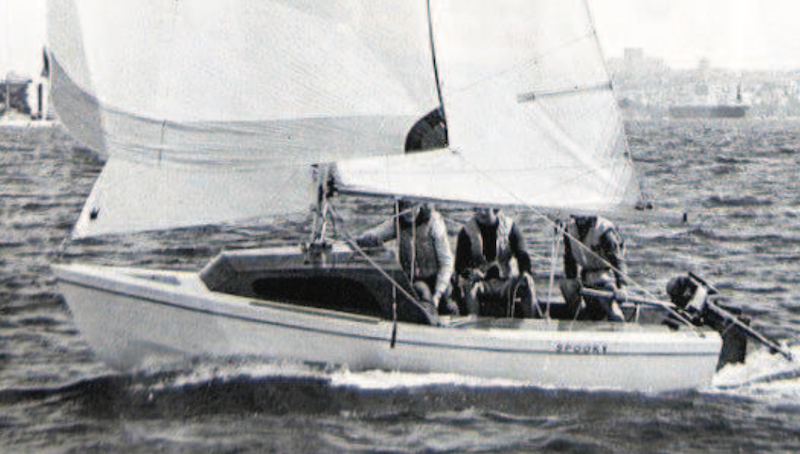

Cherry 16
Description
The Cherry 16 is a dinghy. This pocket cruiser packs surprising capability into a small package, Her generous sail plan delivers excellent light-air performance. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 16.000 ft |
| LOA | 16.000 ft |
| Beam | 7.170 ft |
| Displacement | 485 lb |
The standard boat dimensions
| i | 16.17 ft |
|---|---|
| j | 6.07 ft |
| p | 16.24 ft |
| e | 7.71 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 16.17 ft | 6.07 ft | 16.24 ft | 7.71 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | * 16.41 ft - (5002 mm) |
| Foot | * 10.01 ft - (3051 mm) |
| Leech | * 15.25 ft - (4648 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 9.1 ft - (2774 mm) |
| Deck Angle | * 4.06 ° |
| Area | * 74.66 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 16.24 ft - (4950 mm) |
| Foot | * 7.71 ft - (2350 mm) |
| Leech-AftHdBd | * 17.56 ft - (5352 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 17.73 ft - (5404 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 64.66 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 16.42 ft - (5005 mm) |
| Foot | 7.67 ft - (2338 mm) |
| Leech | 14.75 ft - (4496 mm) |
| Percentage LP | * 113.53 % |
| Length Perpendicular | * 6.89 ft - (2100 mm) |
| Deck Angle | * 5.55 ° |
| Area | * 56.54 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 15.748 ft - (4800 mm) |
| MidGirth | 12.303 ft - (3750 mm) |
| Foot | 12.303 ft - (3750 mm) |
| Perc LP | * 180 |
| Area | * 165 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 16.41 ft - (5002 mm) |
| Foot | * 10.01 ft - (3051 mm) |
| Leech | * 15.1 ft - (4602 mm) |
| Perc LP | * 165 |
| Area | * 123 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
