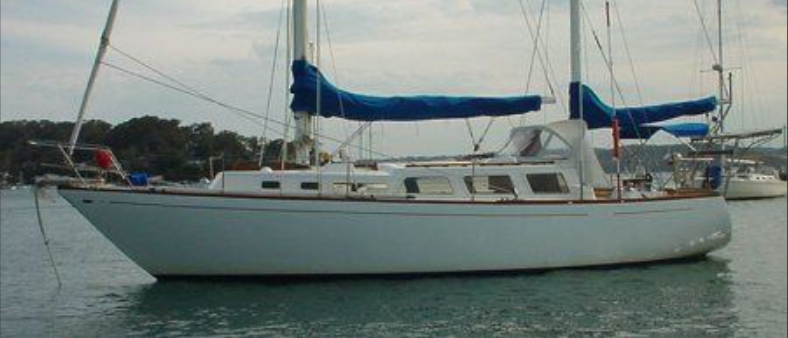

CHALLENGER 40
Description
The CHALLENGER 40 is a compact cruiser. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 40.000 ft |
| LOA | 29.530 ft |
| LWL | 22.170 ft |
| Beam | 21.000 ft |
| Displacement | 3086 lb |
| Max Draft | 5.910 ft |
| Min Draft | 1.310 ft |
The standard boat dimensions
| i | 45.91 ft |
|---|---|
| j | 14.16 ft |
| p | 42.91 ft |
| e | 16.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 45.91 ft | 14.16 ft | 42.91 ft | 16.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 42.91 ft - (13079 mm) |
| Foot | * 16.83 ft - (5130 mm) |
| Leech-AftHdBd | * 45.26 ft - (13795 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 45.54 ft - (13881 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 370.27 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 45.64 ft - (13911 mm) |
| Foot | * 22.77 ft - (6940 mm) |
| Leech | * 43.04 ft - (13119 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21.24 ft - (6474 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 484.7 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.44 ft - (11717 mm) |
| Foot | * 18.64 ft - (5681 mm) |
| Leech | * 33.57 ft - (10232 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 16.28 ft - (4962 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 312.87 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 45.64 ft - (13911 mm) |
| Foot | * 23.36 ft - (7120 mm) |
| Leech | * 41.99 ft - (12799 mm) |
| Perc LP | * 165 |
| Area | * 800 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 26.42 ft - (8053 mm) |
| Foot | * 10.53 ft - (3210 mm) |
| Leech | * 21.92 ft - (6681 mm) |
| Perc LP | * 60.03 |
| Length Perp | * 8.5 |
| Deck Angle | * 19.03 ° |
| Area | * 112.29 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
