Catbird 21
Description
The CATBIRD 21 is a sailboat designed by Karl A. Stambaugh.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

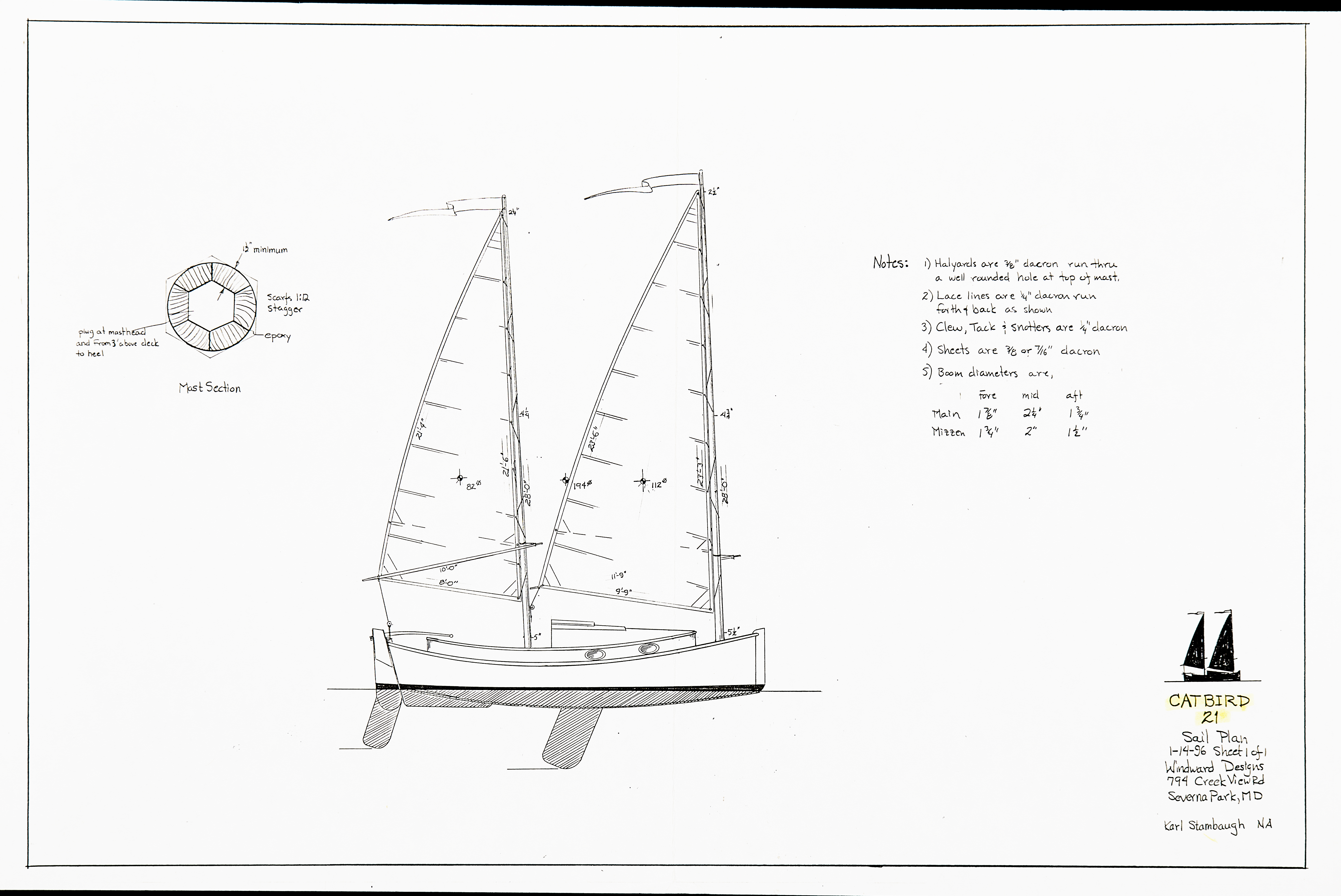

Blueprints
+
Images
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 23.25 ft - (7087 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | * 23.3 ft - (7102 mm) |
| Tack Angle | * 79.4 ° |
| Diagonal | 23.5 ft - (7163 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 115.12 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | 21.5 ft - (6553 mm) |
| Foot | 8 ft - (2438 mm) |
| Leech-AftHdBd | 20.91 ft - (6373 mm) |
| Tack Ang | * 76.52 ° |
| Diag (clew/head) | 21.12 ft - (6437 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area (no Roach) | * 85.76 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
