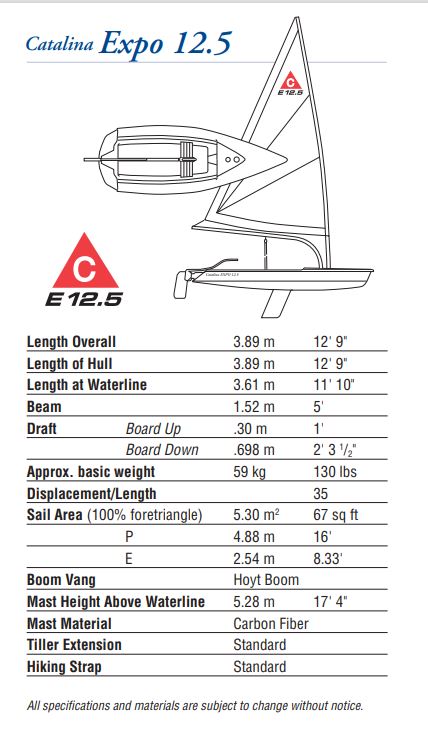

Catalina Expo 12.5
Description
The Catalina Expo 12.5 is a fun machine. Thanks to the SmartRig® and Hoyt boom, getting underway has never been this quick and easy! There are no stays, no chainplates, and no halyards. Putting the boat away is also a snap, as both mast and boom are deck-stepped and removable by hand, without any tools, in minutes. This is one boat every member of the family and friends will want to sail all day long. The tapered one piece carbon fiber mast means more sail power, with less weight aloft. The rotating SmartRig mast acts as a reefing line and furling drum to shorten or increase sail effortlessly. The same line even rolls the sail completely around the mast for storage.
Construction Details
| Designer | Garry Hoyt |
|---|---|
| Builder | Catalina Yachts |
| Length | 12.750 ft |
| LOA | 12.750 ft |
| LWL | 11.830 ft |
| Beam | 5.000 ft |
| Displacement | 130 lb |
| Max Draft | 2.350 ft |
| Min Draft | 1.000 ft |
| Year Built | 1997 |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 16 ft |
| e | 8.33 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 16 ft | 8.33 ft | - | - | - | - |
Sails
Catalina Expo 12.5 - MAINSAIL
| Luff | * 16 ft - (4877 mm) |
|---|---|
| Foot | 8.33 ft - (2539 mm) |
| Leech | 16.25 ft - (4953 mm) |
| Tack Angle | 78 ° |
| Diagonal | * 16.43 ft - (5008 mm) |
| Head (inches) | 2 in - (51 mm) |
| Area | * 65.183 ft² |
| Comments | Rochless no battens so the sail can furl around the mast. |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
