Castle 650
Description

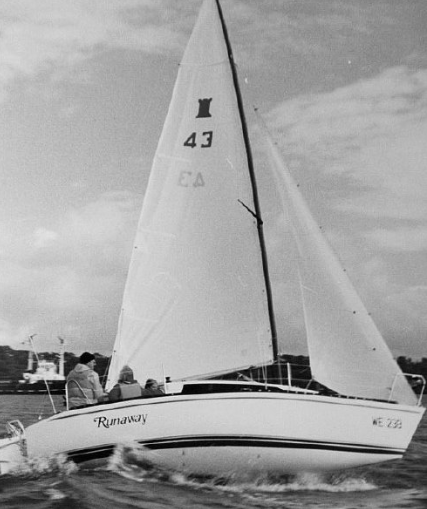

The Castle 650 is a small sailboat. She strikes a balance between performance and comfort. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 21.300 ft |
| LOA | 21.520 ft |
| Beam | 7.940 ft |
| Displacement | 1689 lb |
| Min Draft | 0.980 ft |
The standard boat dimensions
| i | 19.52 ft |
|---|---|
| j | 7.87 ft |
| p | 25.49 ft |
| e | 12.80 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 19.52 ft | 7.87 ft | 25.49 ft | 12.80 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 25.49 ft - (7769 mm) |
| Foot | * 12.8 ft - (3901 mm) |
| Leech-AftHdBd | * 27.83 ft - (8483 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 28.12 ft - (8571 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 168.74 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 19.99 ft - (6093 mm) |
| Foot | * 13.12 ft - (3999 mm) |
| Leech | * 18.5 ft - (5639 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 11.8 ft - (3597 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 117.92 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.08 ft - (6730 mm) |
| Foot | 8.612 ft - (2625 mm) |
| Leech | 19.176 ft - (5845 mm) |
| Percentage LP | * 94.16 % |
| Length Perpendicular | * 7.41 ft - (2259 mm) |
| Deck Angle | * 8.71 ° |
| Area | * 81.78 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 16.84 ft - (5133 mm) |
| Foot | * 10.91 ft - (3325 mm) |
| Leech | * 14.05 ft - (4282 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 9.05 ft - (2758 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 76.2 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 19.99 ft - (6093 mm) |
| Foot | * 12.99 ft - (3959 mm) |
| Leech | * 18.39 ft - (5605 mm) |
| Perc LP | * 165 |
| Area | * 195 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22.08 ft - (6730 mm) |
| Foot | 8.612 ft - (2625 mm) |
| Leech | 19.176 ft - (5845 mm) |
| Percentage LP | * 94.16 % |
| Length Perpendicular | * 7.41 ft - (2259 mm) |
| Deck Angle | * 8.71 ° |
| Area | * 81.78 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
