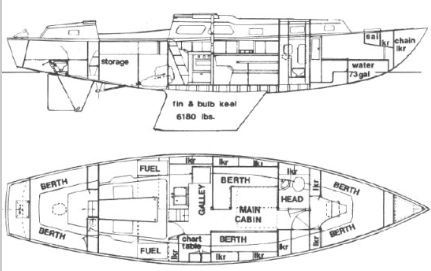

Cascade 42
Description
The CASCADE 42 is a performance cruiser designed by Robert A. Smith. This substantial yacht offers spacious accommodations and excellent seakeeping, Her generous sail plan delivers excellent light-air performance. A true blue water cruiser capable of comfortable ocean passages.
Construction Details
| Designer | Robert A. Smith |
|---|---|
| Length | 42.000 ft |
| LOA | 42.000 ft |
| LWL | 34.000 ft |
| Beam | 11.920 ft |
| Displacement | 18000 lb |
| Max Draft | 6.000 ft |
The standard boat dimensions
| i | 48.38 ft |
|---|---|
| j | 14.46 ft |
| p | 43.25 ft |
| e | 19.83 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 48.38 ft | 14.46 ft | 43.25 ft | 19.83 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 43.25 ft - (13183 mm) |
| Foot | * 19.83 ft - (6044 mm) |
| Leech | * 46.66 ft - (14222 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 46.95 ft - (14310 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 438.1 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 47 ft - (14326 mm) |
| Foot | 17.5 ft - (5334 mm) |
| Leech | 43 ft - (13106 mm) |
| Percentage LP | * 110.65 % |
| Length Perpendicular | * 16 ft - (4877 mm) |
| Deck Angle | * 7.25 ° |
| Area | * 376.01 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 47.97 ft - (14621 mm) |
| Foot | * 23.05 ft - (7026 mm) |
| Leech | * 46.38 ft - (14137 mm) |
| Percentage LP | * 151.66 % |
| Length Perpendicular | * 21.93 ft - (6684 mm) |
| Deck Angle | * 1.3 ° |
| Area | * 525.96 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 49 ft - (14935 mm) |
| Foot | 25 ft - (7620 mm) |
| Leech | 46 ft - (14021 mm) |
| Perc LP | * 165 % |
| Area | * 919 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
