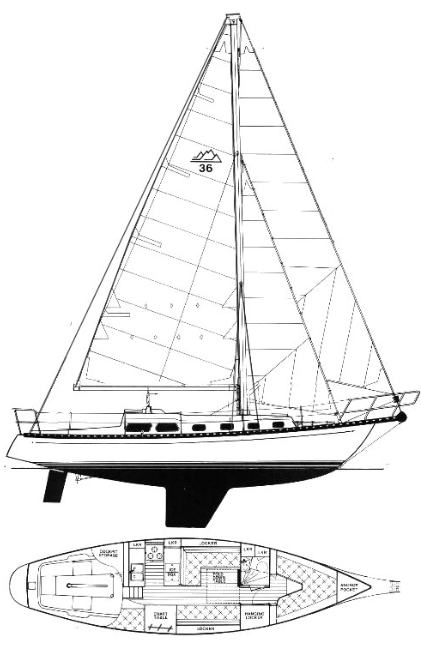

Cascade 36
Description
The CASCADE 36 is a cruising yacht designed by Robert A. Smith. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Robert A. Smith |
|---|---|
| Length | 36.000 ft |
| LOA | 35.560 ft |
| LWL | 28.870 ft |
| Beam | 10.000 ft |
| Displacement | 12500 lb |
| Max Draft | 5.600 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 16.75 ft |
| p | 37.58 ft |
| e | 15.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43 ft | 16.75 ft | 37.58 ft | 15.75 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.58 ft - (11454 mm) |
| Foot | * 15.75 ft - (4801 mm) |
| Leech | * 39.96 ft - (12180 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 40.24 ft - (12265 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 304.07 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.92 ft - (11253 mm) |
| Foot | * 23.04 ft - (7023 mm) |
| Leech | * 30.99 ft - (9446 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 19.26 ft - (5870 mm) |
| Deck Angle | * 12 ° |
| Area | * 355.56 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 41.25 ft - (12573 mm) |
| Foot | 18.2 ft - (5547 mm) |
| Leech | 37 ft - (11278 mm) |
| Percentage LP | * 97.43 % |
| Length Perpendicular | * 16.32 ft - (4974 mm) |
| Deck Angle | * 4.95 ° |
| Area | * 336.7 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.84 ft - (13362 mm) |
| Foot | * 27.79 ft - (8470 mm) |
| Leech | * 40.67 ft - (12396 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 25.13 ft - (7660 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 550.86 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 43.84 ft - (13362 mm) |
| Foot | * 29.09 ft - (8867 mm) |
| Leech | * 38.5 ft - (11735 mm) |
| Perc LP | * 149.97 % |
| Length Perp | * 25.12 ft - (7657 mm) |
| Deck Angle | * 8.99 ° |
| Area | * 550.68 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 43.84 ft - (13362 mm) |
| Foot | * 27.64 ft - (8425 mm) |
| Leech | * 40.33 ft - (12293 mm) |
| Perc LP | * 165 % |
| Area | * 909 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 25.38 ft - (7736 mm) |
| Foot | * 13.17 ft - (4014 mm) |
| Leech | * 19.64 ft - (5986 mm) |
| Perc LP | * 60 % |
| Length Perp | * 10.05 ft - (3063 mm) |
| Deck Angle | * 18.96 ° |
| Area | * 127.57 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 15.74 ft - (4798 mm) |
| Foot | * 14.48 ft - (4414 mm) |
| Leech | * 13.12 ft - (3999 mm) |
| Length Perp | * 13.12 ft - (3999 mm) |
| Tack Angle | * -25 ° |
| Area | * 89 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
