Cascade 29
Description
The Cascade 29 is a rugged, no-nonsense fiberglass cutter from the golden age of American sailboat design, penned by Robert A. Smith and produced by Cascade Yachts (Yacht Constructors Inc.) starting in 1961. With a fin keel and bulb for stability, it's built like a tank for bluewater reliability on a budget—narrow and efficient for shorthanded cruising, with a proven track record (multiple circumnavigations under its belt). Over 355 were built through the 1970s, emphasizing owner-finishing for customization, but that means many survivors need elbow grease on teak or plywood bits.
Construction Details
| Designer | Robert A. Smith |
|---|---|
| Builder | Cascade Yachts (Yacht Constructors Inc.) |
| Length | 29.000 ft |
| LOA | 29.000 ft |
| LWL | 24.000 ft |
| Beam | 8.170 ft |
| Displacement | 7500 lb |
| Ballast | 2380 lb |
| Max Draft | 4.750 ft |
| Year Built | 1961 |
The standard boat dimensions
| i | 35.90 ft |
|---|---|
| j | 10.08 ft |
| p | 32 ft |
| e | 14 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 35.90 ft | 10.08 ft | 32 ft | 14 ft | - | - | - | - |

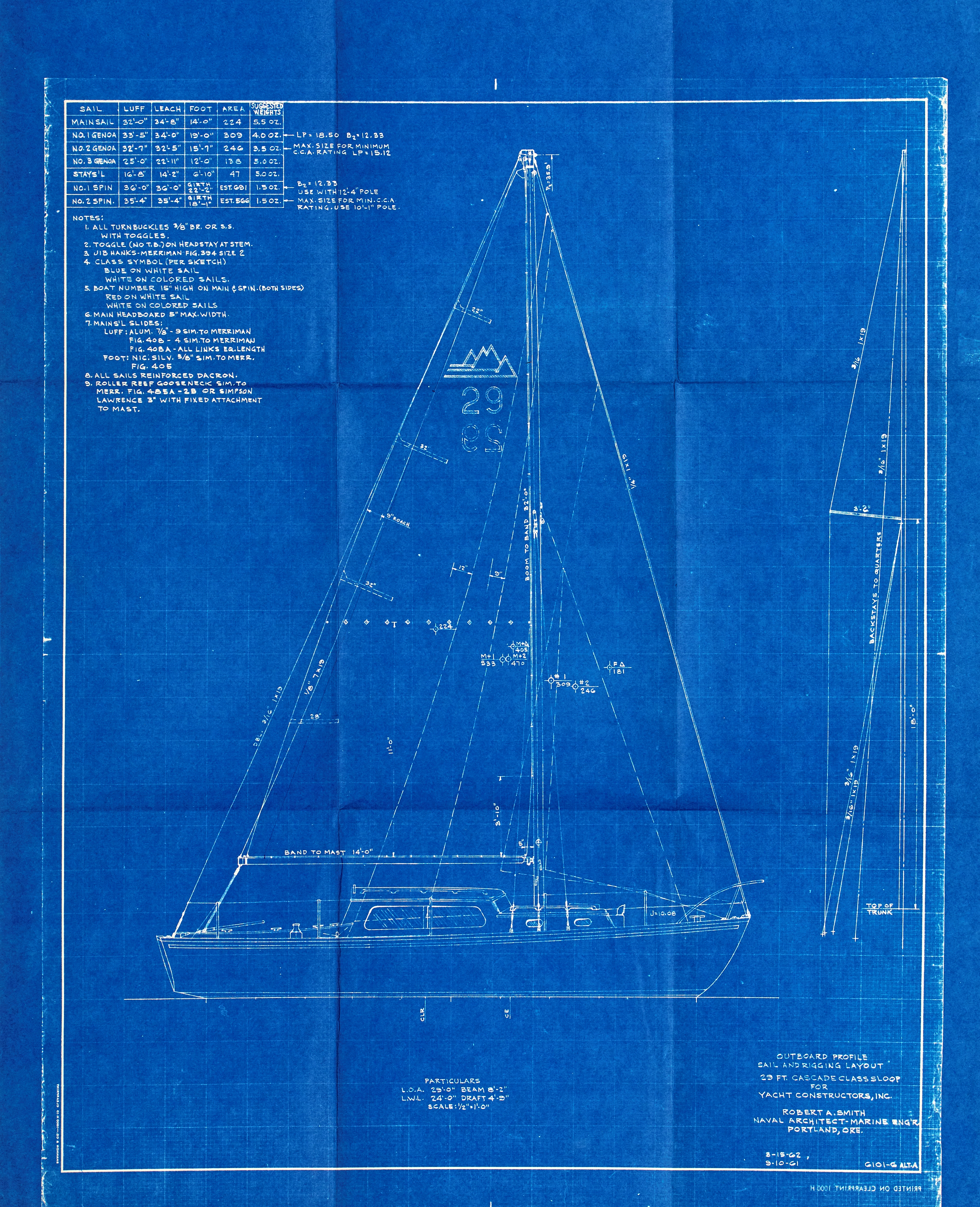

Blueprints
Sails
Cascade 29 - MAINSAIL
| Luff | 32 ft - (9754 mm) |
|---|---|
| Foot | 14 ft - (4267 mm) |
| Leech | * 34.2 ft - (10424 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 34.48 ft - (10510 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 230.97 ft² |
| Edit in Calculator | |
Cascade 29 - JIBSAIL
| Luff | * 29.83 ft - (9092 mm) |
|---|---|
| Foot | * 13.09 ft - (3990 mm) |
| Leech | * 26.42 ft - (8053 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 11.59 ft - (3533 mm) |
| Deck Angle | * 12.03 ° |
| Area | * 172.84 ft² |
| Edit in Calculator | |
Cascade 29 - JIBSAIL
| Luff | 31.75 ft - (9677 mm) |
|---|---|
| Foot | 11.67 ft - (3557 mm) |
| Leech | 27.75 ft - (8458 mm) |
| Percentage LP | * 99.9 % |
| Length Perpendicular | * 10.07 ft - (3069 mm) |
| Deck Angle | * 14.64 ° |
| Area | * 159.91 ft² |
| Edit in Calculator | |
Cascade 29 - GENOA
| Luff | 35.42 ft - (10796 mm) |
|---|---|
| Foot | 16 ft - (4877 mm) |
| Leech | 33.75 ft - (10287 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.12 ft - (4609 mm) |
| Deck Angle | * 3.45 ° |
| Area | * 267.71 ft² |
| Edit in Calculator | |
Cascade 29 - GENOA
| Luff | 35 ft - (10668 mm) |
|---|---|
| Foot | 14.167 ft - (4318 mm) |
| Leech | 32.5 ft - (9906 mm) |
| Percentage LP | * 130.46 % |
| Length Perpendicular | * 13.15 ft - (4008 mm) |
| Deck Angle | * 6.19 ° |
| Area | * 230.08 ft² |
| Edit in Calculator | |
Cascade 29 - ASYMMETRICAL
| Luff | 36 ft - (10973 mm) |
|---|---|
| Foot | 17 ft - (5182 mm) |
| Leech | 33.5 ft - (10211 mm) |
| Perc LP | * 165 % |
| Area | * 459 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
