Cascade 23
Description
The CASCADE 23 is a small sailboat designed by Robert A. Smith. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Robert A. Smith |
|---|---|
| Length | 23.000 ft |
| LOA | 22.920 ft |
| LWL | 20.080 ft |
| Beam | 7.670 ft |
| Displacement | 2500 lb |
| Max Draft | 5.830 ft |
| Min Draft | 1.670 ft |

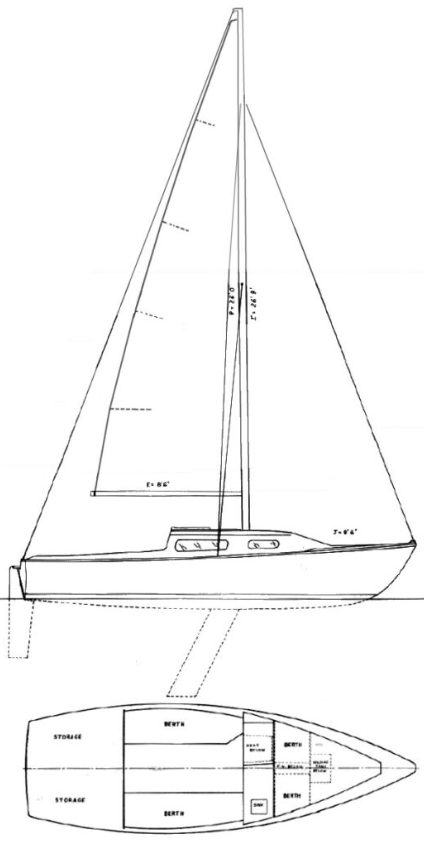

The standard boat dimensions
| i | 26.75 ft |
|---|---|
| j | 9.50 ft |
| p | 26 ft |
| e | 8.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 26.75 ft | 9.50 ft | 26 ft | 8.50 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26 ft - (7925 mm) |
| Foot | * 8.5 ft - (2591 mm) |
| Leech | * 26.97 ft - (8220 mm) |
| Tack Angle | * 87.99 ° |
| Diagonal | * 27.07 ft - (8251 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | 110.38 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 22.71 ft - (6922 mm) |
| Foot | * 12.82 ft - (3908 mm) |
| Leech | * 19.38 ft - (5907 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 10.93 ft - (3331 mm) |
| Deck Angle | * 12 ° |
| Area | 124.08 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 26.97 ft - (8220 mm) |
| Foot | * 15.54 ft - (4737 mm) |
| Leech | * 25.18 ft - (7675 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.25 ft - (4343 mm) |
| Deck Angle | * 4 ° |
| Area | 192.11 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 26.97 ft - (8220 mm) |
| MidGirth | * 17.1 ft - (5212 mm) |
| Foot | * 17.1 ft - (5212 mm) |
| Perc LP | * 180 % |
| Area | 392.01 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
