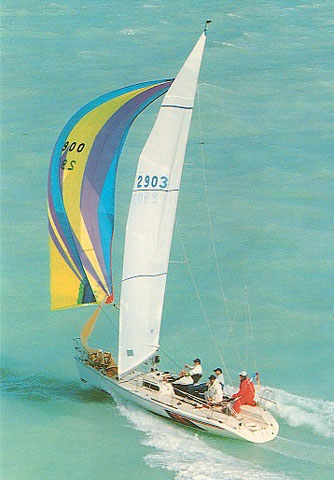

Carrera 290
Description
The Carrera 290 is a high-performance, trailerable racing sailboat (with some cruising capability) designed by Swedish naval architect Håkan Södergren (known for fast, modern designs like the Swede 41, various IOR/IMS racers, and later IRC-optimized boats). Introduced in 1992, it was built in the USA by Edgecomb Marine Group (also associated with Casey Yacht Enterprises in some listings; production was limited, likely in the 1990s, with a successor redesign as the Carrera 280 in 1995—same hull but shortened stern by ~15 inches and deeper keel).
Construction Details
| Designer | Håkan Södergren |
|---|---|
| Builder | Edgecomb Marine Group |
| Length | 29.170 ft |
| LOA | 29.170 ft |
| LWL | 26.920 ft |
| Beam | 9.450 ft |
| Displacement | 2550 lb |
| Max Draft | 5.910 ft |
| Year Built | 1992 |
The standard boat dimensions
| i | 34.50 ft |
|---|---|
| j | 10.80 ft |
| p | 35.40 ft |
| e | 13.10 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 34.50 ft | 10.80 ft | 35.40 ft | 13.10 ft | - | - | - | - |
Sails
Carrera 290 - JIBSAIL
| Luff | * 28.92 ft - (8815 mm) |
|---|---|
| Foot | * 14.25 ft - (4343 mm) |
| Leech | * 25.21 ft - (7684 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.42 ft - (3786 mm) |
| Deck Angle | * 11.96 ° |
| Area | * 179.62 ft² |
| Edit in Calculator |
Carrera 290 - GENOA
| Luff | * 34.34 ft - (10467 mm) |
|---|---|
| Foot | * 17.4 ft - (5304 mm) |
| Leech | * 32.34 ft - (9857 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.2 ft - (4938 mm) |
| Deck Angle | * 4.02 ° |
| Area | * 278.15 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
