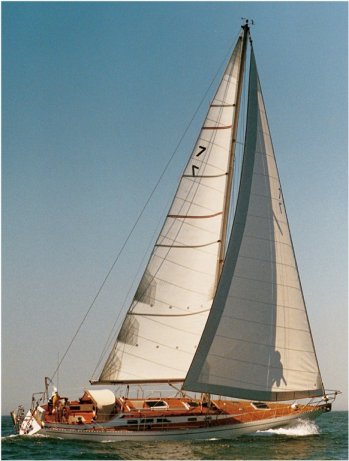

Cardinal 46 (Warwick 46)
Description
The Cardinal 46 is a bluewater-capable cruising sailboat designed by Alan Warwick (New Zealand naval architect, founder of Warwick Yacht Design in Auckland around 1980; he passed in 2018 after producing hundreds of designs, including performance and luxury yachts). It's often listed as the Warwick Cardinal 46 (or simply Warwick 46 in the Cardinal series), a moderate-displacement masthead sloop known for solid offshore performance, good handling (easy short-handed or single-handed), and comfortable liveaboard accommodations. Built in Taiwan (various yards: Sen Koh Shipbuilding Co., Tania Yachts/Kaohsiung, others subcontracted)
Construction Details
| Designer | Alan Warwick |
|---|---|
| Builder | Sen Koh Shipbuilding Co. |
| Length | 46.420 ft |
| LOA | 46.420 ft |
| LWL | 38.080 ft |
| Beam | 13.150 ft |
| Displacement | 27500 lb |
| Max Draft | 6.000 ft |
| Year Built | 198 |
The standard boat dimensions
| i | 55.67 ft |
|---|---|
| j | 18.25 ft |
| p | 49.83 ft |
| e | 17 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 55.67 ft | 18.25 ft | 49.83 ft | 17 ft | - | - | - | - |
Sails
Cardinal 46 (Warwick 46) - MAINSAIL
| Luff | * 49.83 ft - (15188 mm) |
|---|---|
| Foot | * 17 ft - (5182 mm) |
| Leech | * 51.92 ft - (15825 mm) |
| Tack Angle | * 87.98 ° |
| Diagonal | * 52.08 ft - (15874 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 423.12 ft² |
| Edit in Calculator |
Cardinal 46 (Warwick 46) - JIBSAIL
| Luff | * 46.87 ft - (14286 mm) |
|---|---|
| Foot | * 24.27 ft - (7397 mm) |
| Leech | * 40.54 ft - (12357 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.99 ft - (6398 mm) |
| Deck Angle | * 12 ° |
| Area | 491.87 ft² |
| Edit in Calculator |
Cardinal 46 (Warwick 46) - GENOA
| Luff | * 55.66 ft - (16965 mm) |
|---|---|
| Foot | * 29.56 ft - (9010 mm) |
| Leech | * 52.26 ft - (15929 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 27.38 ft - (8345 mm) |
| Deck Angle | * 4 ° |
| Area | 761.94 ft² |
| Edit in Calculator |
Cardinal 46 (Warwick 46) - SPINNAKER
| Stays | * 55.66 ft - (16965 mm) |
|---|---|
| MidGirth | * 32.85 ft - (10013 mm) |
| Foot | * 32.85 ft - (10013 mm) |
| Perc LP | * 180 % |
| Area | 1554.17 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
