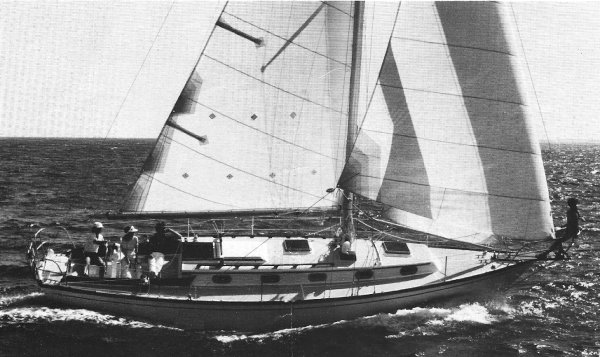

Cape Dory 36
Description
The Cape Dory 36 is a modified version of the Alberg 37, which was designed in 1964 as a racing boat and is still in production in Canada. In order to make the 36 suitable for cruising, Alberg took the 37 and reduced the draft from 5'6" to 5'0", increased the beam from 10'2" to 10'8" (thereby making up for the stability lost in reducing the draft) and shortened the overhangs slightly.
Construction Details
| Designer | Cape Dory Co |
|---|---|
| Length | 36.000 ft |
| LOA | 36.120 ft |
| LWL | 27.000 ft |
| Beam | 10.670 ft |
| Displacement | 16100 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 42 ft |
|---|---|
| j | 15.50 ft |
| p | 37 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 42 ft | 15.50 ft | 37 ft | 16 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37 ft - (11278 mm) |
| Foot | * 16 ft - (4877 mm) |
| Leech-AftHdBd | * 39.55 ft - (12055 mm) |
| Tack Ang | * 88.02 ° |
| Diag (clew/head) | * 39.8 ft - (12131 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 304.41 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 41.5 ft - (12649 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 38.75 ft - (11811 mm) |
| Percentage LP | * 130.97 % |
| Length Perpendicular | * 20.3 ft - (6187 mm) |
| Deck Angle | * 2.44 ° |
| Area | * 421.14 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 42.53 ft - (12963 mm) |
| Foot | * 26.65 ft - (8123 mm) |
| Leech | * 37.56 ft - (11448 mm) |
| Perc LP | * 150 % |
| Length Perp | * 23.25 ft - (7087 mm) |
| Deck Angle | * 9.01 ° |
| Area | * 494.36 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 43 ft - (13106 mm) |
| Foot | 26 ft - (7925 mm) |
| Leech | 41 ft - (12497 mm) |
| Perc LP | * 165 % |
| Area | * 838 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 42.53 ft - (12963 mm) |
| MidGirth | * 27.9 ft - (8504 mm) |
| Foot | * 27.9 ft - (8504 mm) |
| Perc LP | * 180 % |
| Area | * 1009 ft² |
| Sail Type | YANKEE |
|---|---|
| Luff | 40.25 ft - (12268 mm) |
| Foot | 19 ft - (5791 mm) |
| Leech | 32.083 ft - (9779 mm) |
| Percentage LP | * 95.94 % |
| Length Perpendicular | * 14.87 ft - (4532 mm) |
| Deck Angle | * 18.22 ° |
| Area | * 299.33 ft² |
| Sail Type | YANKEE |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 24.5 ft - (7468 mm) |
| Leech | 29.5 ft - (8992 mm) |
| Percentage LP | * 119.48 % |
| Length Perpendicular | * 18.52 ft - (5645 mm) |
| Deck Angle | * 20.64 ° |
| Area | * 361.15 ft² |
| Sail Type | STAYSAIL |
|---|---|
| Luff | 30.33 ft - (9245 mm) |
| Foot | 10.33 ft - (3149 mm) |
| Leech | 25.75 ft - (7849 mm) |
| Percentage LP | * 54.26 % |
| Length Perpendicular | * 8.41 ft - (2563 mm) |
| Deck Angle | * 15.21 ° |
| Area | * 127.59 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 24 ft - (7315 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 21.75 ft - (6629 mm) |
| Perc LP | * 58.45 % |
| Length Perp | * 9.06 ft - (2761 mm) |
| Deck Angle | * 4.75 ° |
| Area | * 108.75 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 15.74 ft - (4798 mm) |
| Foot | 17.2 ft - (5243 mm) |
| Leech | 24 ft - (7315 mm) |
| Length Perp | * 13.12 ft - (3999 mm) |
| Tack Angle | * 18.37 ° |
| Area | * 135 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
