Cape Cod Oystering Skiff
Description
150 #
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | 14 ft |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 14 ft | - | - | - | - | - |

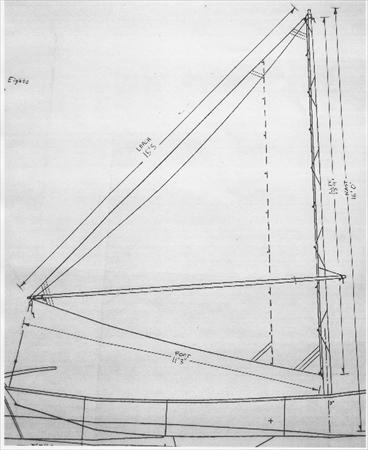

Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | LEG-O-MUTTON |
|---|---|
| Tack Angle | * 70 ° |
| Head (Inches) | * 3.5 |
| Sail Type | LEG-O-MUTTON |
|---|---|
| Luff | 13.75 ft - (4191 mm) |
| Foot | 11.25 ft - (3429 mm) |
| Leech | * 15.33 ft - (4673 mm) |
| Tack Angle | * 75.43 ° |
| Diag (clew/head) | 15.42 ft - (4700 mm) |
| Head (Inches) | 1.5 |
| Area | * 75.53 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
