Cambria 40
Description

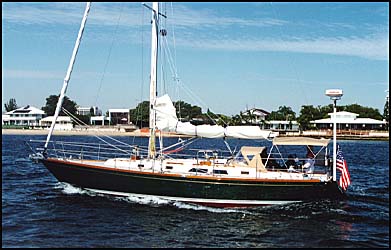

The Cambria 40 is a premium performance cruising sailboat, part of the respected Cambria series designed by David Walters (of David Walters Yachts) and built as a semi-custom yacht. Introduced in the mid-1980s (first built around 1985), it aimed to deliver fast, comfortable passagemaking with build quality rivaling top New England yards like Hinckley, Alden, and Little Harbor. Early production occurred in Portsmouth, Rhode Island, with later hulls (or molds) associated with Cabo Rico Custom Yachts in Costa Rica for some builds. Only a limited number were produced—about eight from the 40 molds—making them rare and sought-after among serious cruisers. This is a balanced "gentleman's racer-cruiser": spirited performance for shorthanded sailing or offshore racing (some have competed in events like Newport to Bermuda), yet sea-kindly and comfortable for extended bluewater or coastal cruising. It features a fin keel with spade rudder for good handling and speed, Airex-cored fiberglass hull, Divinycell-cored deck for strength and lightness, and elegant, high-end interiors with teak joinery.
Construction Details
| Designer | David Walters |
|---|---|
| Builder | Cabo Rico Yachts |
| Length | 40.000 ft |
| LOA | 41.420 ft |
| LWL | 32.500 ft |
| Beam | 12.250 ft |
| Displacement | 26000 lb |
| Ballast | 9500 lb |
| Max Draft | 7.000 ft |
| Min Draft | 5.500 ft |
| Year Built | 1985 |
The standard boat dimensions
| i | 56.50 ft |
|---|---|
| j | 16 ft |
| p | 50 ft |
| e | 14.20 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 56.50 ft | 16 ft | 50 ft | 14.20 ft | - | - | - | - |
Sails
Cambria 40 - MAINSAIL
| Luff | * 50 ft - (15240 mm) |
|---|---|
| Foot | * 14.2 ft - (4328 mm) |
| Leech | * 51.36 ft - (15655 mm) |
| Tack Angle | * 88.01 ° |
| Diagonal | * 51.5 ft - (15697 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 354.64 ft² |
| Edit in Calculator | |
Cambria 40 - JIBSAIL
| Luff | * 46.98 ft - (14320 mm) |
|---|---|
| Foot | * 20.8 ft - (6340 mm) |
| Leech | * 41.57 ft - (12671 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.4 ft - (5608 mm) |
| Deck Angle | * 12 ° |
| Area | 432.17 ft² |
| Edit in Calculator | |
Cambria 40 - GENOA
| Luff | * 55.79 ft - (17005 mm) |
|---|---|
| Foot | * 25.51 ft - (7775 mm) |
| Leech | * 52.9 ft - (16124 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24 ft - (7315 mm) |
| Deck Angle | * 4 ° |
| Area | 669.47 ft² |
| Edit in Calculator | |
Cambria 40 - SPINNAKER
| Stays | * 55.79 ft - (17005 mm) |
|---|---|
| MidGirth | * 28.8 ft - (8778 mm) |
| Foot | * 28.8 ft - (8778 mm) |
| Perc LP | * 180 % |
| Area | 1365.74 ft² |
| Edit in Calculator | |
