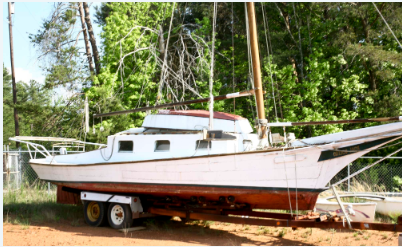

Calico Jack
Description
The Calico Jack skipjack design by J.F. (Joseph F.) Gregory is a notable adaptation of the traditional Chesapeake Bay skipjack, originally a working oyster dredger, reimagined for recreational use. Developed by Gregory, a naval architect from Yorktown, Virginia, this design is detailed in various boating publications and plans, such as those from WoodenBoat Store and 100 Boat Plans. It reflects Gregory's extensive study of 45 working bateaux, incorporating both traditional elements and his own "fudge factors" for enhanced performance and comfort.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 24.08 ft |
| e | 19.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 24.08 ft | 19.83 ft | - | - |
Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 24.08 ft - (7340 mm) |
| Foot | 19.83 ft - (6044 mm) |
| Leech | * 30.34 ft - (9248 mm) |
| Tack Angle | * 88.02 ° |
| Diagonal | * 30.66 ft - (9345 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 238.39 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22.67 ft - (6910 mm) |
| Foot | 11.17 ft - (3405 mm) |
| Leech | 16.5 ft - (5029 mm) |
| Length Perpendicular | 7.71 ft - (2350 mm) |
| Area | 87.39 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.75 ft - (6934 mm) |
| Foot | 16.67 ft - (5081 mm) |
| Leech | 17.75 ft - (5410 mm) |
| Length Perpendicular | 12.9 ft - (3932 mm) |
| Area | 146.74 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Perc LP | * 180 % |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
