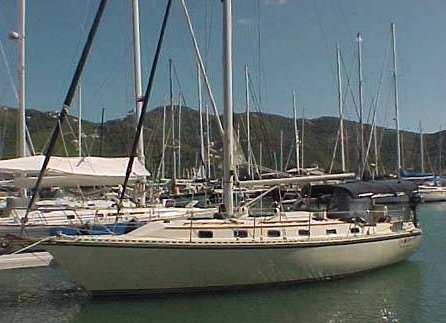

CALIBER 40
Description
LOA 40.92', LOH 39.08', LWL 32.5', Beam 12.67', Draft 5.08', Ballast 9500 lbs, Disp 21600 lbs. Introduced in 1987.
Construction Details
| Designer | M. McCreary |
|---|---|
| Length | 40.920 ft |
| LOA | 40.920 ft |
| LWL | 32.500 ft |
| Beam | 12.670 ft |
| Displacement | 21600 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 50.50 ft |
|---|---|
| j | 17.25 ft |
| p | 45.75 ft |
| e | 13.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 50.50 ft | 17.25 ft | 45.75 ft | 13.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | STORMJIB |
|---|---|
| Luff | 28 ft - (8534 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 25 ft - (7620 mm) |
| Perc LP | * 56.81 |
| Length Perp | * 9.8 |
| Deck Angle | * 8.18 ° |
| Area | * 137.17 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45.75 ft - (13945 mm) |
| Foot | * 13.25 ft - (4039 mm) |
| Leech-AftHdBd | * 46.91 ft - (14298 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 47.18 ft - (14380 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 312.81 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 42.69 ft - (13012 mm) |
| Foot | * 23.11 ft - (7044 mm) |
| Leech | * 36.67 ft - (11177 mm) |
| Percentage LP | * 115.01 % |
| Length Perpendicular | * 19.84 ft - (6047 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 423.49 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 49.5 ft - (15088 mm) |
| Foot | 24.25 ft - (7391 mm) |
| Leech | 46 ft - (14021 mm) |
| Percentage LP | * 129.8 % |
| Length Perpendicular | * 22.39 ft - (6824 mm) |
| Deck Angle | * 3.73 ° |
| Area | * 554.13 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 50.7 ft - (15453 mm) |
| Foot | * 29.27 ft - (8921 mm) |
| Leech | * 45.17 ft - (13768 mm) |
| Perc LP | * 150.03 |
| Length Perp | * 25.88 |
| Deck Angle | * 9 ° |
| Area | * 656 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 52 ft - (15850 mm) |
| Foot | 28.25 ft - (8611 mm) |
| Leech | 47.75 ft - (14554 mm) |
| Perc LP | * 165 |
| Area | * 1102 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 50.7 ft - (15453 mm) |
| MidGirth | * 31.05 ft - (9464 mm) |
| Foot | * 31.05 ft - (9464 mm) |
| Perc LP | * 180 |
| Area | * 1338 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
