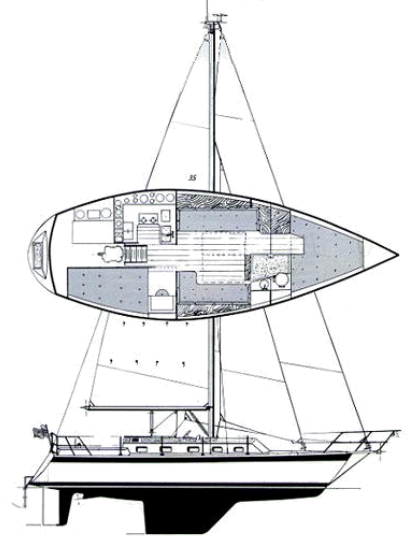

Caliber 35
Description
Introduced in 1984.
Construction Details
| Designer | M. McCreary |
|---|---|
| Length | 35.000 ft |
| LOA | 35.750 ft |
| LWL | 29.830 ft |
| Beam | 11.330 ft |
| Displacement | 13100 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 15.25 ft |
| p | 39.25 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 43 ft | 15.25 ft | 39.25 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 43.34 ft - (13210 mm) |
| Foot | * 25.16 ft - (7669 mm) |
| Leech | * 39.87 ft - (12152 mm) |
| Perc LP | * 165 |
| Area | * 818 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 43.34 ft - (13210 mm) |
| Foot | * 26.04 ft - (7937 mm) |
| Leech | * 38.45 ft - (11720 mm) |
| Perc LP | * 150.03 |
| Length Perp | * 22.88 |
| Deck Angle | * 9 ° |
| Area | * 495.77 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 23 ft - (7010 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 19 ft - (5791 mm) |
| Perc LP | * 53.31 |
| Length Perp | * 8.13 |
| Deck Angle | * 16.11 ° |
| Area | * 93.47 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 14.04 ft - (4279 mm) |
| Foot | * 12.91 ft - (3935 mm) |
| Leech | * 11.7 ft - (3566 mm) |
| Length Perp | * 11.7 |
| Tack Angle | * -25 ° |
| Area | * 71 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 25.09 ft - (7647 mm) |
| Foot | * 11.7 ft - (3566 mm) |
| Leech | * 20.01 ft - (6099 mm) |
| Perc LP | * 60 |
| Length Perp | * 9.15 |
| Deck Angle | * 19.04 ° |
| Area | * 114.77 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39.25 ft - (11963 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 40.4 ft - (12314 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 40.64 ft - (12387 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 242.77 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 36.5 ft - (11125 mm) |
| Foot | * 20.58 ft - (6273 mm) |
| Leech | * 31.14 ft - (9491 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 17.54 ft - (5346 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 320.07 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 43.34 ft - (13210 mm) |
| Foot | * 24.95 ft - (7605 mm) |
| Leech | * 40.48 ft - (12338 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 22.88 ft - (6974 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 495.84 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
