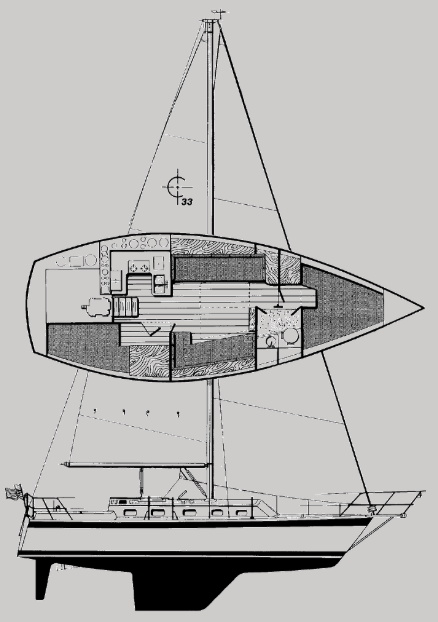

Caliber 33 Tall Mast
Description
Introduced in 1984.
Construction Details
| Designer | M. McCreary |
|---|---|
| Length | 33.000 ft |
The standard boat dimensions
| i | 45.50 ft |
|---|---|
| j | 14.25 ft |
| p | 40.25 ft |
| e | 12.67 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 45.50 ft | 14.25 ft | 40.25 ft | 12.67 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 40.25 ft - (12268 mm) |
| Foot | * 12.67 ft - (3862 mm) |
| Leech-AftHdBd | * 41.5 ft - (12649 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 41.77 ft - (12731 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 263.59 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 38.14 ft - (11625 mm) |
| Foot | * 18.81 ft - (5733 mm) |
| Leech | * 33.23 ft - (10129 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 16.39 ft - (4996 mm) |
| Deck Angle | * 12 ° |
| Area | * 312.53 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 45.3 ft - (13807 mm) |
| Foot | * 22.96 ft - (6998 mm) |
| Leech | * 42.67 ft - (13006 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 21.38 ft - (6517 mm) |
| Deck Angle | * 4 ° |
| Area | * 484.24 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 45.3 ft - (13807 mm) |
| MidGirth | * 25.65 ft - (7818 mm) |
| Foot | * 25.65 ft - (7818 mm) |
| Perc LP | * 180 |
| Area | * 988 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
