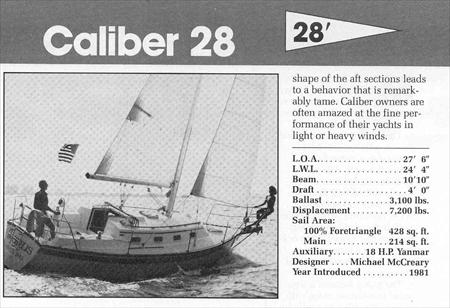

CALIBER 28
Description
L.O.A 27.5', L.W.L 24.33', Beam 10.83', Draft 4', Ballast 3100 lbs, Displacement 7200 lbs. Introduced in 1981.
Construction Details
| Designer | M. McCreary |
|---|---|
| Length | 27.500 ft |
| LOA | 27.500 ft |
| LWL | 24.330 ft |
| Beam | 10.830 ft |
| Displacement | 7200 lb |
| Max Draft | 3.920 ft |
The standard boat dimensions
| i | 39.33 ft |
|---|---|
| j | 10.83 ft |
| p | 35 ft |
| e | 11.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39.33 ft | 10.83 ft | 35 ft | 11.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 38.75 ft - (11811 mm) |
| Foot | * 17.22 ft - (5249 mm) |
| Leech | 36.81 ft - (11220 mm) |
| Percentage LP | 150 % |
| Length Perpendicular | * 16.24 ft - (4950 mm) |
| Area | * 314.71 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 32.64 ft - (9949 mm) |
| Foot | * 14.03 ft - (4276 mm) |
| Leech | 29 ft - (8839 mm) |
| Length Perpendicular | * 12.46 ft - (3798 mm) |
| Area | * 203.32 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | 38.75 ft - (11811 mm) |
| MidGirth | 19.49 ft - (5941 mm) |
| Foot | 19.49 ft - (5941 mm) |
| Perc LP | * 180 |
| Area | * 642 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 39 ft - (11887 mm) |
| Foot | 18 ft - (5486 mm) |
| Leech | 36 ft - (10973 mm) |
| Perc LP | 165 |
| Area | * 526 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35 ft - (10668 mm) |
| Foot | * 11.5 ft - (3505 mm) |
| Leech-AftHdBd | * 36.22 ft - (11040 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 36.46 ft - (11113 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 207.78 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 35 ft - (10668 mm) |
| Foot | 11.5 ft - (3505 mm) |
| Leech-AftHdBd | * 36.22 ft - (11040 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 36.46 ft - (11113 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 207.78 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
