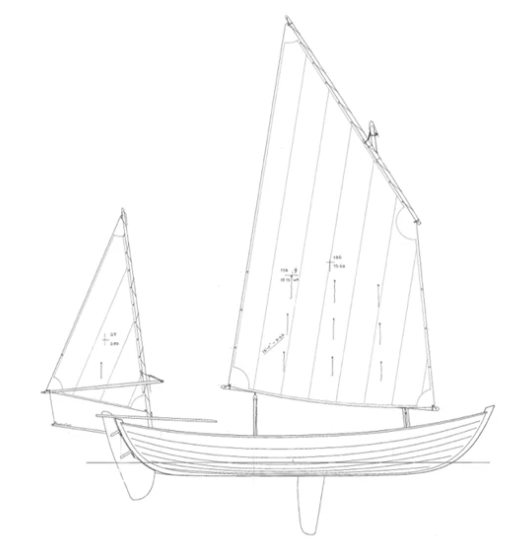

CALEDONIA YAWL
Description
350 lbs @
Sail calculations are not available for this boat as some dimensions are missing.
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Length | 19.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | LUGSAIL |
|---|---|
| Luff | 8.33 ft - (2539 mm) |
| Foot | 10.75 ft - (3277 mm) |
| Leech | 18.167 ft - (5537 mm) |
| Head | * 84.22 ft - (25670 mm) |
| Diag (clew/throat) | 12.92 ft - (3938 mm) |
| Tack Angle | 12.83 ° |
| Area | * 127.43 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | 11.25 ft - (3429 mm) |
| Foot | 6 ft - (1829 mm) |
| Leech-AftHdBd | 11.24 ft - (3426 mm) |
| Tack Ang | * 74.43 ° |
| Diag (clew/head) | 11.24 ft - (3426 mm) |
| Head (inches) | 2 in |
| Area (no Roach) | * 33.45 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
