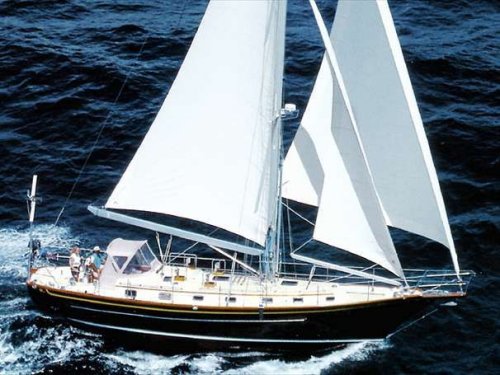

Cabo Rico 45 / 47
Description
The Cabo Rico 45 and 47 (often grouped as 45/47) are highly regarded bluewater cruising sailboats from Cabo Rico Yachts, known for their exceptional build quality, luxurious teak interiors, and proven offshore performance. Designed by renowned naval architect William I.B. (Bill) Crealock, these are semi-custom, heavy-displacement cutters (with ketch options available) built primarily in fiberglass (GRP) for long-distance cruising safety and comfort. The 45 was introduced in 1995, with limited production (likely fewer than 10 hulls, last around 2007). The 47 is a stretched or enhanced variant (sometimes called 47 Pilot), introduced around 2006, sharing the same hull lines but with added length (often for extended cockpit, accommodations, or pilothouse protection in some builds). Both excel in heavy weather, with excellent stability, tracking, and motion comfort due to their full keel with cutaway forefoot.
Construction Details
| Designer | William Crealock |
|---|---|
| Builder | Cabo Rico Yachts |
| Length | 46.000 ft |
| LOA | 46.500 ft |
| LWL | 35.000 ft |
| Beam | 13.250 ft |
| Displacement | 35600 lb |
| Ballast | 13500 lb |
| Max Draft | 5.500 ft |
| Year Built | 1995 |
The standard boat dimensions
| i | 57.50 ft |
|---|---|
| j | 20.03 ft |
| p | 51 ft |
| e | 21.17 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 57.50 ft | 20.03 ft | 51 ft | 21.17 ft | - | - | - | - |
Sails
Cabo Rico 45 / 47 - MAINSAIL
| Luff | * 51 ft - (15545 mm) |
|---|---|
| Foot | * 21.17 ft - (6453 mm) |
| Leech | * 54.25 ft - (16535 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 54.53 ft - (16621 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 550.77 ft² |
| Edit in Calculator | |
Cabo Rico 45 / 47 - JIBSAIL
| Luff | * 48.71 ft - (14847 mm) |
|---|---|
| Foot | * 26.93 ft - (8208 mm) |
| Leech | * 41.69 ft - (12707 mm) |
| Percentage LP | * 114.98 % |
| Length Perpendicular | * 23.03 ft - (7020 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 560.9 ft² |
| Edit in Calculator | |
Cabo Rico 45 / 47 - GENOA
| Luff | * 57.84 ft - (17630 mm) |
|---|---|
| Foot | * 32.69 ft - (9964 mm) |
| Leech | * 54.06 ft - (16477 mm) |
| Percentage LP | * 149.98 % |
| Length Perpendicular | * 30.04 ft - (9156 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 868.74 ft² |
| Edit in Calculator | |
Cabo Rico 45 / 47 - SPINNAKER
| Stays | * 57.84 ft - (17630 mm) |
|---|---|
| MidGirth | * 36.05 ft - (10988 mm) |
| Foot | * 36.05 ft - (10988 mm) |
| Perc LP | * 180 % |
| Area | * 1772 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
