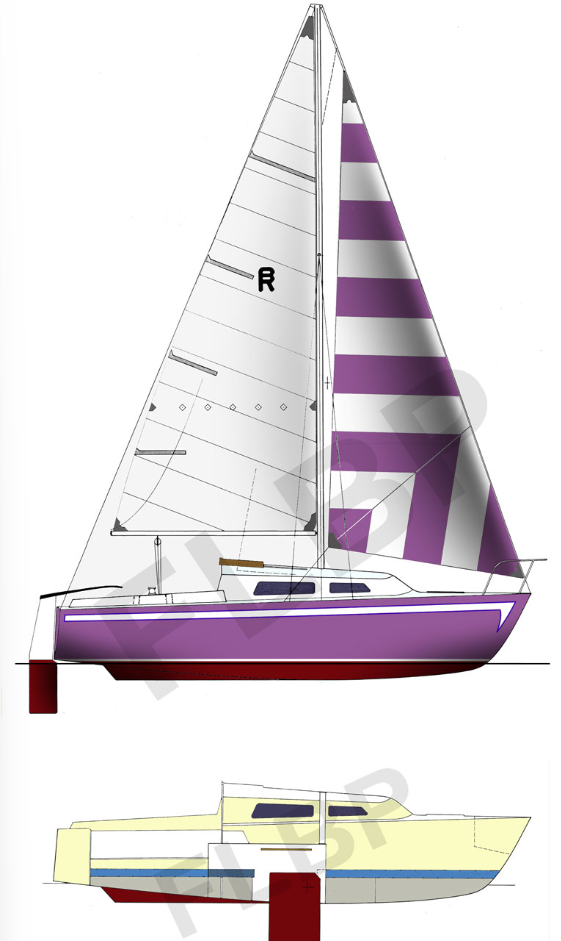

Roberts TS 19 (Adventurer)

Roberts TS 19 (Adventurer)

Description

The Bruce Roberts TS 19, known as the Adventurer 19, is a compact, trailerable pocket cruiser and daysailer designed by Bruce Roberts-Goodson in 1974, ideal for solo or family gunkholing in shallow coastal waters, rivers, or lakes, with over 500 built worldwide proving its popularity for affordable DIY projects. This buoyant, stable design features a flat-bottomed hull for easy beaching and strong wind performance, available in two versions—centerboard (Version A) for ultra-shallow draft or fixed keel (Version B) for added stability—supporting fiberglass (C-Flex, single skin, or foam sandwich), cold-molded wood-epoxy, steel, or aluminum construction, all with watertight bulkheads, foam flotation, and no thru-hull fittings for unsinkable safety. Rigged as a masthead sloop for robust handling and simplicity, it reaches 7–10 knots and has logged epic voyages like Canada to Australia or 3,000-mile passages; plans include full-size patterns, trailer/dinghy designs, a 50-page detail folio, photos, and e-books, with study packages starting around $395 USD for wood-epoxy builds under $10,000 total.

Construction Details

Designer Bruce Roberts-Goodson
Length 19.250 ft
LOA 19.250 ft
LWL 16.583 ft
Beam 7.083 ft
Displacement 188 lb
Ballast 135 lb
Max Draft 3.583 ft
Min Draft 0.833 ft
Request A Sail Quote

The standard boat dimensions

i 55 ft
j 22 ft
p -
e -
p2 -
e2 -
i2 -
j2 -

Sails

Roberts TS 19 (Adventurer) - ASYMMETRICAL

Luff * 56.27 ft - (17151 mm)
Foot * 36.3 ft - (11064 mm)
Leech * 51.77 ft - (15779 mm)
Perc LP * 165 %
Area * 1532 ft²
Edit in Calculator

Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
