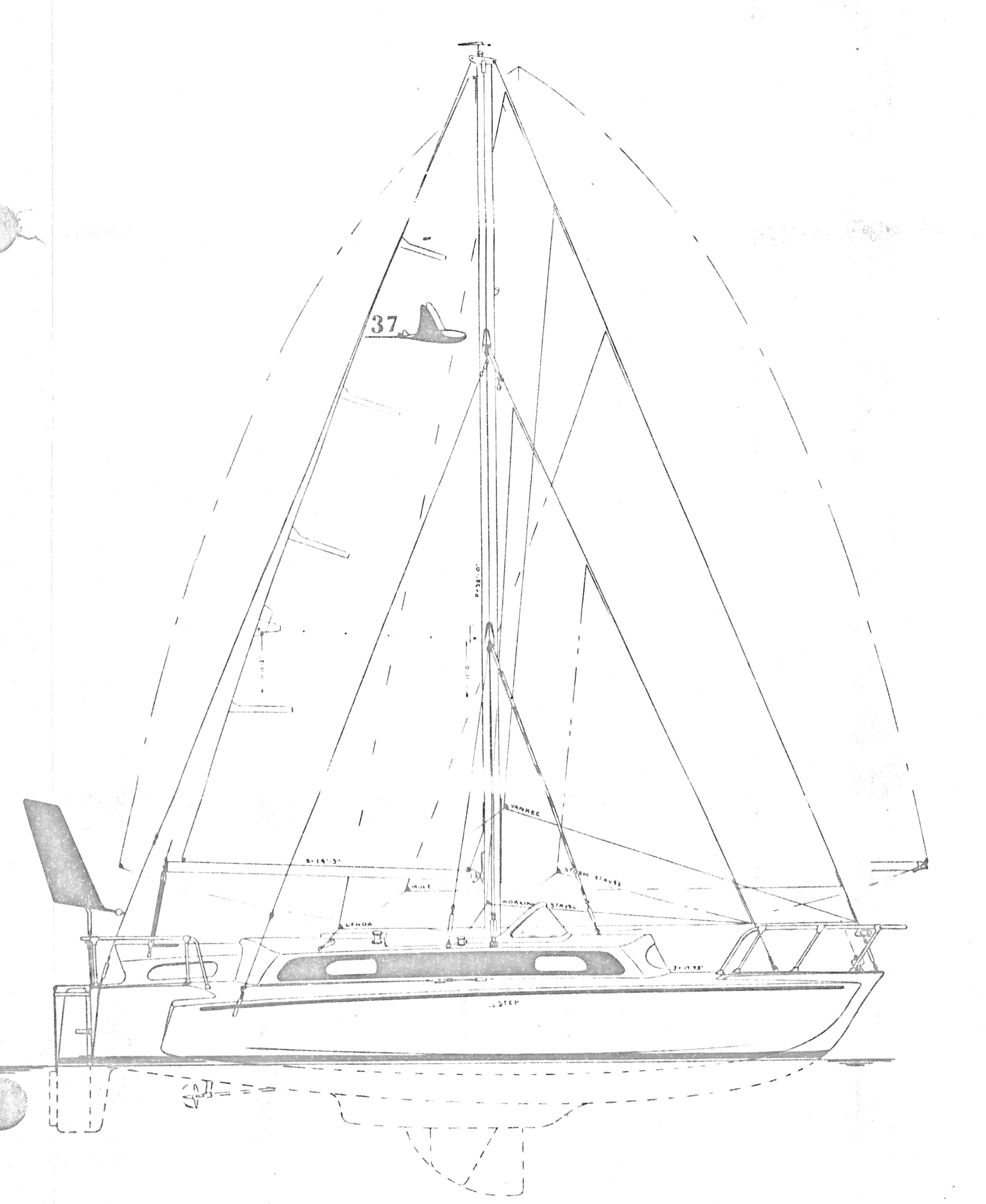

BROWN SEARUNNER CUTTER 37

Description

The BROWN SEARUNNER CUTTER 37 is a sailboat designed by Jim Brown. Her generous sail plan delivers excellent light-air performance.

Construction Details

Designer Jim Brown
Length 37.000 ft
Request A Quote

The standard boat dimensions

i 43 ft
j 17.75 ft
p 37.50 ft
e 14.30 ft
p2 -
e2 -

Sails

Sail Type JIBSAIL
Luff 39.167 ft - (11938 mm)
Foot 16.083 ft - (4902 mm)
Leech 36.83 ft - (11226 mm)
Percentage LP * 85.01 %
Length Perpendicular * 15.09 ft - (4599 mm)
Deck Angle * -2.17 °
Area * 295.47 ft²
Sail Type GENOA
Luff 43 ft - (13106 mm)
Foot 24.5 ft - (7468 mm)
Leech 40.8 ft - (12436 mm)
Percentage LP * 128.11 %
Length Perpendicular * 22.74 ft - (6931 mm)
Deck Angle * -0.57 °
Area * 488.87 ft²
Sail Type YANKEE
Luff 37 ft - (11278 mm)
Foot 17.5 ft - (5334 mm)
Leech 29 ft - (8839 mm)
Percentage LP * 75.38 %
Length Perpendicular * 13.38 ft - (4078 mm)
Deck Angle * 17.68 °
Area * 247.62 ft²
Sail Type STAYSAIL
Luff 27.2 ft - (8291 mm)
Foot 12.6 ft - (3840 mm)
Leech 23.8 ft - (7254 mm)
Percentage LP * 62.08 %
Length Perpendicular * 11.02 ft - (3359 mm)
Deck Angle * 6.56 °
Area * 149.9 ft²
Sail Type STORMJIB
Luff 18.9 ft - (5761 mm)
Foot 9.5 ft - (2896 mm)
Leech 14.9 ft - (4542 mm)
Perc LP * 41.63
Length Perp * 7.39
Deck Angle * 16.46 °
Area * 69.88 ft²
Sail Type TOPSAIL
Luff * 32.47 ft - (9897 mm)
Foot * 21.57 ft - (6575 mm)
Leech * 24.68 ft - (7522 mm)
Perc LP * 115.02
Length Perp * 16.39
Deck Angle * 19.98 °
Area * 266.13 ft²
Sail Type ASYMMETRICAL
Luff * 44.19 ft - (13469 mm)
Foot * 29.29 ft - (8928 mm)
Leech * 40.65 ft - (12390 mm)
Perc LP * 165
Area * 971 ft²
Sail Type MAINSAIL
Luff 37.5 ft - (11430 mm)
Foot 14.3 ft - (4359 mm)
Leech-AftHdBd 39.91 ft - (12165 mm)
Tack Ang * 90.28 °
Diag (clew/head) 40.2 ft - (12253 mm)
Head (inches) 5 in
Area (no Roach) * 274.11 ft²

Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
