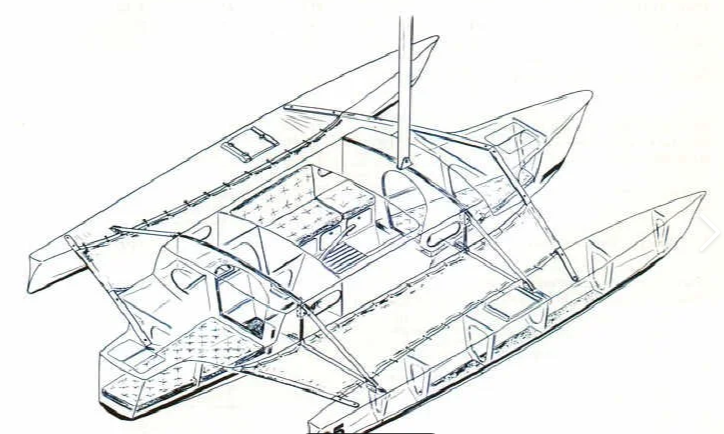

Brown Searunner 25 Tri
Description
The BROWN SEARUNNER 25 TRI is a sailboat designed by Jim Brown. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 28.50 ft |
|---|---|
| j | 9.25 ft |
| p | 26.30 ft |
| e | 11.30 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 28.50 ft | 9.25 ft | 26.30 ft | 11.30 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 11.167 ft - (3404 mm) |
| Leech-AftHdBd | 27.54 ft - (8394 mm) |
| Tack Ang | * 86.98 ° |
| Diag (clew/head) | 27.75 ft - (8458 mm) |
| Head (inches) | 5 in |
| Area (no Roach) | * 149.94 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 21.75 ft - (6629 mm) |
| Percentage LP | * 117.51 % |
| Length Perpendicular | * 10.87 ft - (3313 mm) |
| Deck Angle | * 11.56 ° |
| Area | * 135.93 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17.25 ft - (5258 mm) |
| Foot | 8.25 ft - (2515 mm) |
| Leech | 14.25 ft - (4343 mm) |
| Percentage LP | * 73.19 % |
| Length Perpendicular | * 6.77 ft - (2063 mm) |
| Deck Angle | * 16.85 ° |
| Area | * 58.41 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 28.67 ft - (8739 mm) |
| Foot | 15.33 ft - (4673 mm) |
| Leech | 27.5 ft - (8382 mm) |
| Percentage LP | * 155.68 % |
| Length Perpendicular | * 14.4 ft - (4389 mm) |
| Deck Angle | * 2.02 ° |
| Area | * 206.49 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 28.47 ft - (8678 mm) |
| Foot | * 15.26 ft - (4651 mm) |
| Leech | * 26.19 ft - (7983 mm) |
| Perc LP | * 165 % |
| Area | * 326 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
