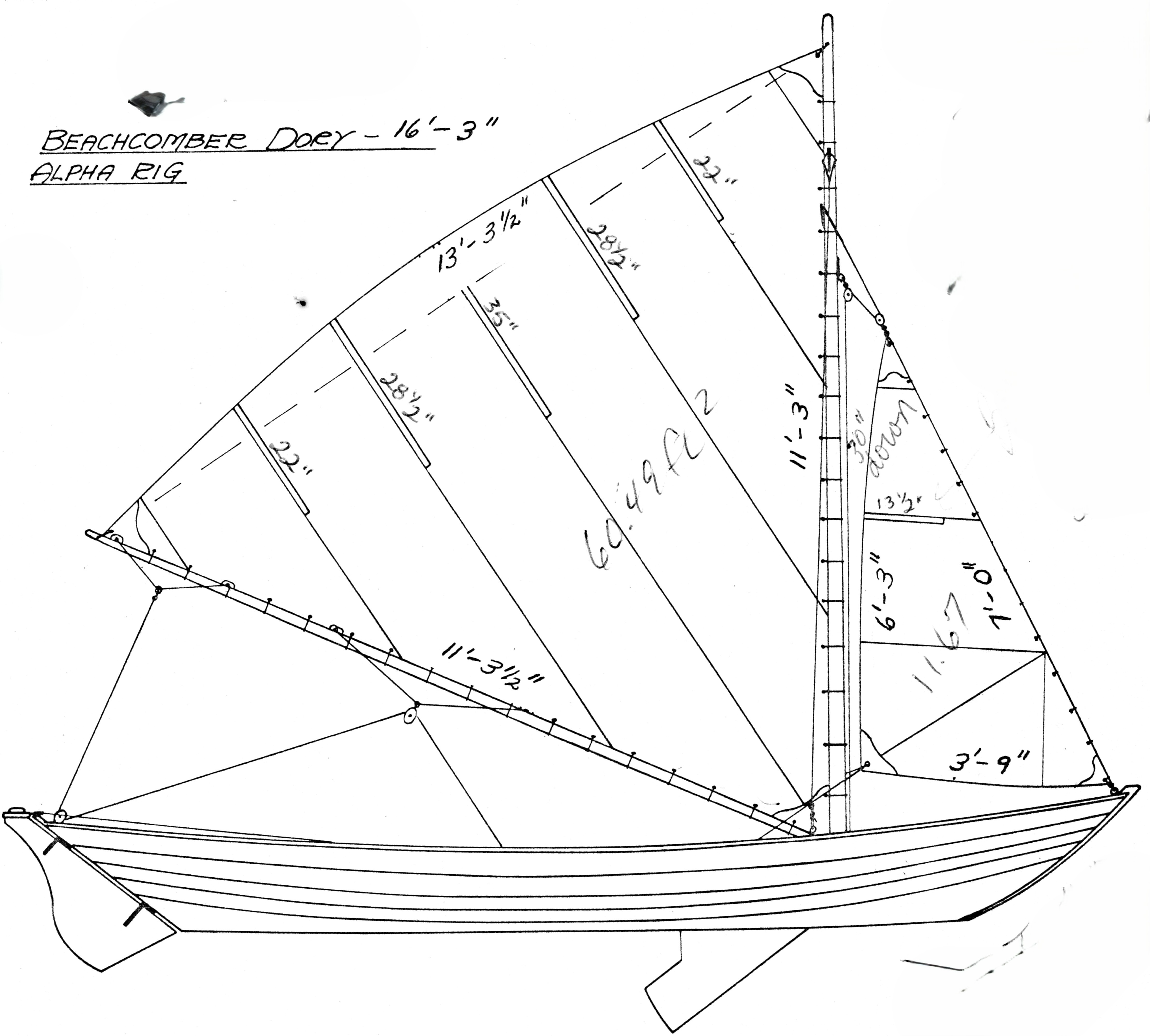

Beachcomber Dory Alpha rig 16'3"
Description
The Beachcomber Dory Alpha rig 16'3" is a sailboat.
Sail calculations are not available for this boat as some dimensions are missing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 16.250 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 7 ft - (2134 mm) |
| Foot | 3.75 ft - (1143 mm) |
| Leech | 6.25 ft - (1905 mm) |
| Length Perpendicular | * 3.34 ft - (1018 mm) |
| Area | * 11.67 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 11.25 ft - (3429 mm) |
| Foot | 11.29 ft - (3441 mm) |
| Leech-AftHdBd | 13.38 ft - (4078 mm) |
| Tack Ang | * 72.26 ° |
| Diag (clew/head) | 13.29 ft - (4051 mm) |
| Head (inches) | 1.5 in |
| Area (no Roach) | * 61.07 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
