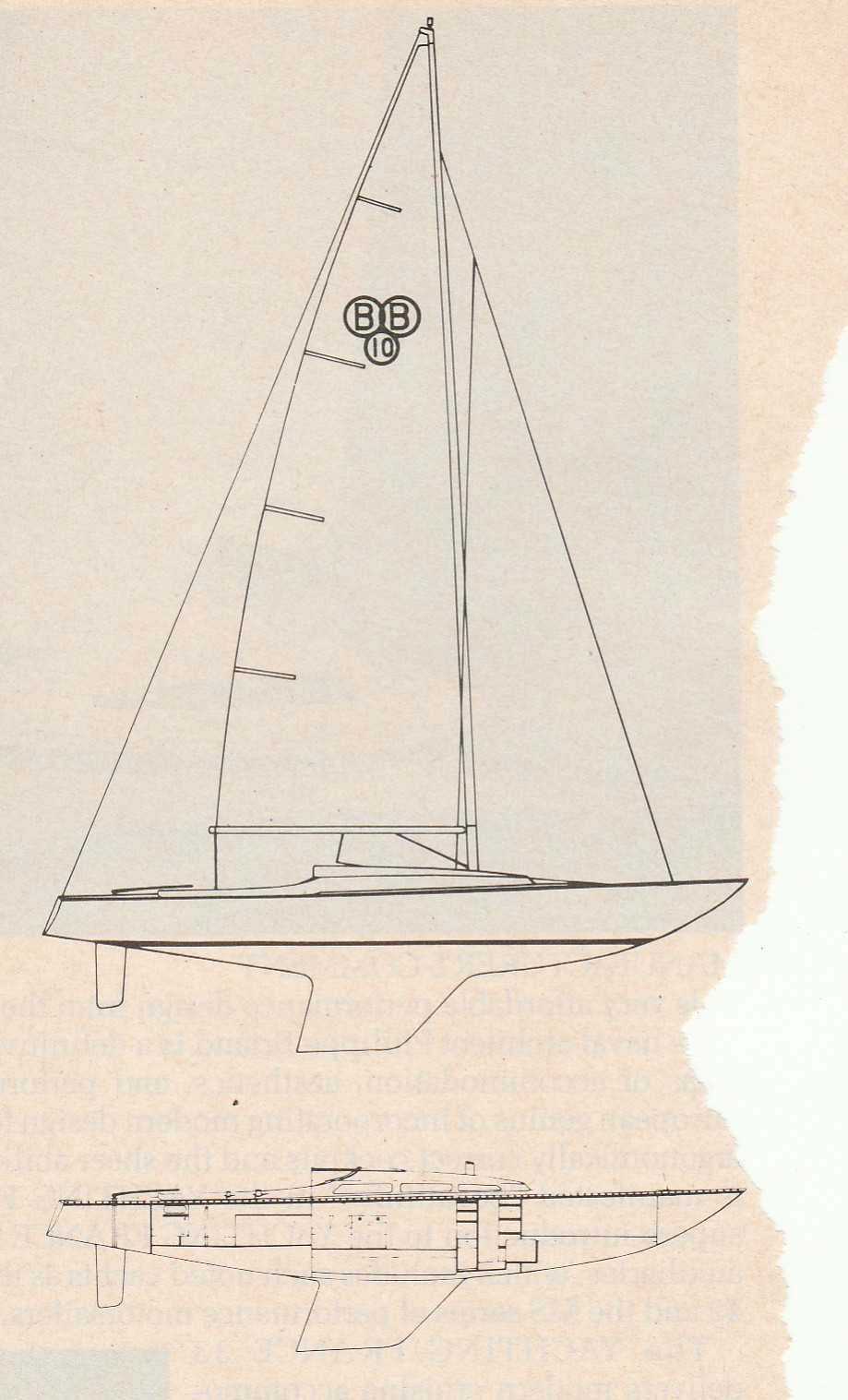

BB 10 Meter
Description
The BB 10 Meter is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 32.800 ft |
The standard boat dimensions
| i | 30.10 ft |
|---|---|
| j | 9.82 ft |
| p | 36.09 ft |
| e | 11.65 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30.10 ft | 9.82 ft | 36.09 ft | 11.65 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 30.08 ft - (9168 mm) |
| Foot | * 16.2 ft - (4938 mm) |
| Leech | * 27.67 ft - (8434 mm) |
| Perc LP | * 165 |
| Area | * 365 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36.09 ft - (11000 mm) |
| Foot | * 11.65 ft - (3551 mm) |
| Leech-AftHdBd | * 37.29 ft - (11366 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 37.53 ft - (11439 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 216.93 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 30.08 ft - (9168 mm) |
| Foot | * 15.89 ft - (4843 mm) |
| Leech | * 28.26 ft - (8614 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.73 ft - (4490 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 221.53 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.33 ft - (7721 mm) |
| Foot | * 13.05 ft - (3978 mm) |
| Leech | * 21.92 ft - (6681 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 11.29 ft - (3441 mm) |
| Deck Angle | * 12.02 ° |
| Area | * 143.01 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 30.08 ft - (9168 mm) |
| MidGirth | * 17.68 ft - (5389 mm) |
| Foot | * 17.68 ft - (5389 mm) |
| Perc LP | * 180 |
| Area | * 452 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
